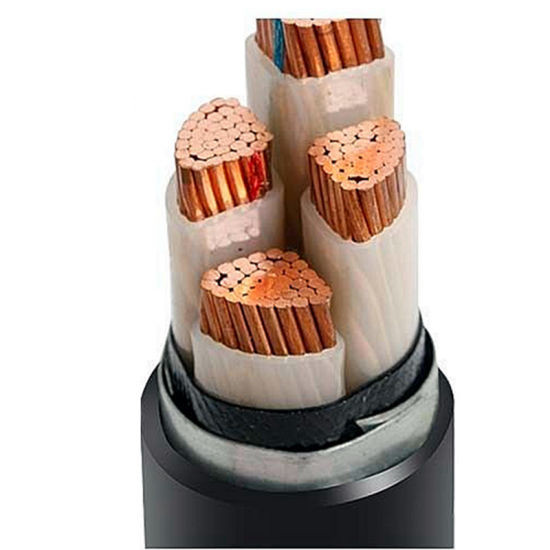

CONSTRUCTION

1. Conductor: Plain Annealed Copper, Class 2 Stranded Circular, Compacted or Sectored

2. Insulation: Cross-linked Polyethylene (XLPE)  Compound

• Cores cabled together with filler and covered with Polyester (PET) Tape

• 4 Cores: Brown,  Black, Grey,Blue or Red, Yellow, Blue, Black

• Insulation Color :

• Assembly :

3. Outer Sheath: Polyvinyl Chloride (PVC) Compound Type ST 2

• Outer Sheath Color : Black

ELECTRICAL CHARACTERISTICS

• Operating Voltage, Uo/U :   0.6/1KV

• Operating Temperature : -15'C to 90'C

• Final Short Circuit Temperature : 250′ C

• Test Voltage : 3.5kV for 5 minutes

• Current Carrying Capacity

• One 3 or 4-Core Cable, 3-Phase A.C : 58A

• One 3 or 4-Core Cable, 3-Phase A.C : 78A

• One 3 or 4-Core Cable, 3-Phase A.C : 73A

1.  Clipped Direct (Ref Method C)

2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)

3. Direct in Ground or in ducting in ground, in or around building (Ref method D)

REFERENCE STANDARD

• Design Specification: IEC60502-1

• Conductor: IEC60228, BS EN60228

• Flame Retardancy: IEC60332-1, BS EN60332-1
