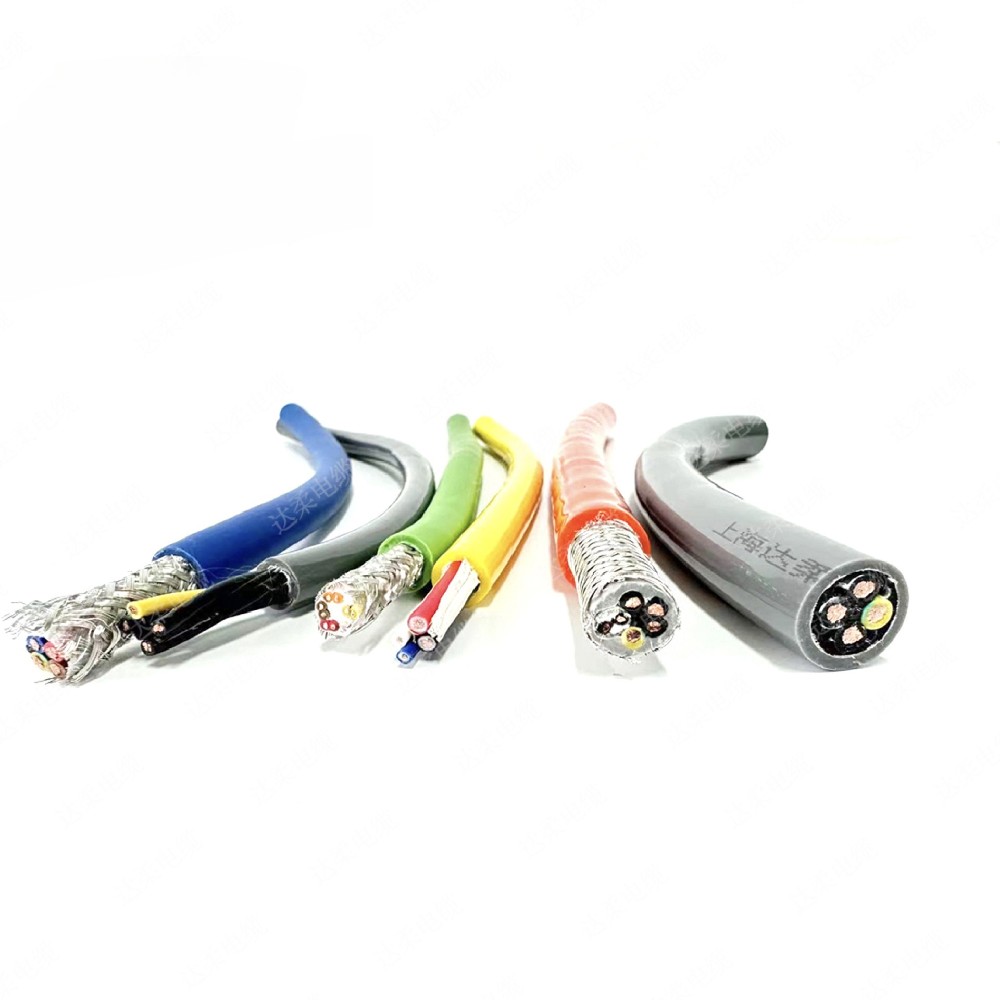

Double sheath highly flexible shielded control cable manufacturer, focusing on the field of highly flexible cable, factory direct sale, quality assurance.

Double sheath highly flexible shielded control cables are used in continuous repetitive motion and are also suitable for situations where there is free movement with moderate mechanical stress.

The cables are used in power drag chains with moving mechanical parts and are more effective when used in conjunction with drag chains.

The high-density shielding ensures interference-free transmission of signals and impulses.

The double-sheathed cables are lined with an inner layer that enhances the cables' resistance to mechanical stress.

Cable composition

Conductor: fine oxygen-free bare copper wire, multi-stranded soft conductor, complying with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standard.
Insulation: high-strength modified PVC or PE with excellent electrical insulation properties, colour coded or number coded (can be customized according to customer requirements).
Cable formation: short pitch stranded, 12 cores and above using composite cable structure.
Inner sheath: high strength special composite sheath material.
Shield: copper mesh braided shield, braiding density ≥ 85%
Outer sheath: high strength and low viscosity special PVC composite material
Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements)
Cable technical parameters

Rated voltage: ≥0.5mm, 300/500V
Test voltage: 2000V
Insulation resistance: ≥20MΩ/km (20℃)
Zui small bending radius: mobile use: 7.5X cable outer diameter, fixed installation: 4X cable outer diameter
Temperature range: Mobile use: -5℃~70℃, Fixed installation: -20℃~80

Ask
Does highly flexible cable mean highly flexible cable?

Answer
Highly flexible cable is not highly flexible cable. As the name suggests, people tend to think that highly flexible is particularly soft, and the softer the better, therefore, some manufacturers take advantage of this point, with ultra-high softness of ordinary cables to pretend to be drag chain cables. The true meaning of ‘flexible’ in highly flexible cable is pliable, not soft.

Ask
Can ordinary cable RVVP be used in cable drag chains?

Answer
Strictly speaking, RVVP cannot be used in cable chains. Ordinary cable RVVP is a flexible cable used for fixed laying, although it can be used for occasional movement, but it is not suitable for frequent back and forth bending of the movement occasions.
