There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

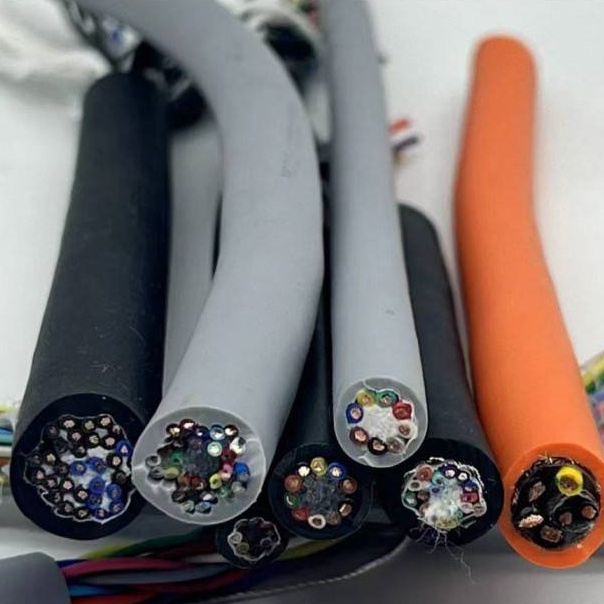

Highly flexible control cable is a kind of highly flexible cable with multi-strand flexible conductor structure for control.

Control cables can be divided into fixed installation and mobile use of two kinds of different environments, for fixed installation of control cables called flexible control cables, mobile use of control cables is called highly flexible control cables, can be used as a drag chain cable.

Highly flexible control cable composition
Conductor: fine oxygen-free bare copper wire, multi-stranded, in accordance with GB/T3956 (VDE0295/IEC60228) Class5 or Class6 standards.
Insulation: high-strength imported PE materials, colour differentiation (can be customized according to customer requirements to production)
Inner sheath: high strength special composite sheath special material (different models vary)
Shielding: anti-oxidation tinned copper mesh braided shielding, braiding density ≥ 85% or more, can effectively prevent interference from internal and external (varies by model)
Sheath: high strength and low viscosity special PVC composite material or high strength imported PUR material.
Sheath colour: grey (default), black, orange (other colours can be customized according to customers' requirements).
Highly flexible control cable characteristics
Special PVC drag chain cables for drag chains are ideal for use in drag chains.
Due to the special cable structure, the Zui big characteristic of this cable is good flexibility. Resistant to bending, folding, abrasion and oil, for mobile use under continuous reciprocating motion.
Application areas of highly flexible control cable
Widely used in CNC machine tools, vertical lathes, glass machinery, woodworking machinery, robot manipulators, cutting machines, engraving machines, door and window machinery and many other automated machinery and equipment.

Ask
What is the difference between Flexible Drag Chain Cable TRVV and High Flexible Drag Chain Cable TRVV?

Answer
TRVV means copper core, PVC insulated, PVC sheathed flexible cable for drag chain, there is no difference between the two in cable type. Is there any difference between flexible drag chain cable and highly flexible drag chain cable? From the surface meaning of the text, highly flexible drag chain cable is obviously better than flexible drag chain cable, but do not make products is not a word game, cable naming does need to follow certain principles, only to understand the production standards of the off to understand the difference between the cables.

Ask
Why claim millions of times the drag chain cable a few days to break the line?

Answer
The so-called millions of times of drag chain bending times of drag chain cables are derived under specific experimental conditions, not in all equipment will have millions of times of drag chain bending times. When the equipment environment is better than the experimental environment, the number of drag chain bends of the cable is high; on the contrary, when the environment of the equipment is worse, it may lead to a very rapid decline in the number of drag chain bends of the cable.

There are many types of cables, but the website demonstration is limited. If you need any cable, please contact us and we accept customization.
