Highly flexible shielded control cable manufacturer, focusing on the field of highly flexible cable, factory direct sale, quality assurance.

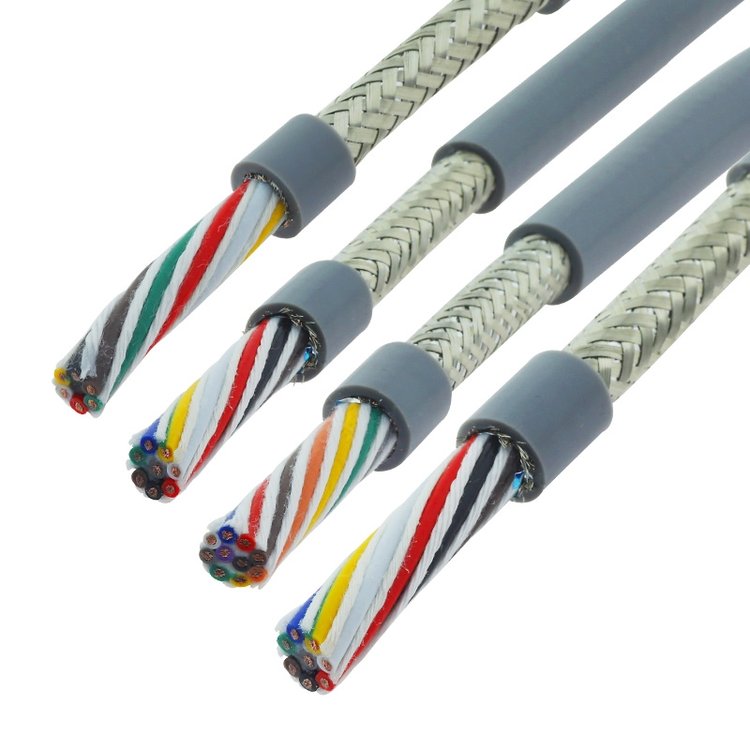

Highly flexible shielded control cables are used in continuous repetitive motion and are also suitable for situations where there is free movement with moderate mechanical stress.

The cables are used in power drag chains with moving mechanical parts and are more effective when used in conjunction with drag chains.

The high density of the shielding ensures interference-free transmission of signals and impulses.

The highly flexible, shielded control cables are designed with a non-internal shield, which considerably reduces the overall cable outer diameter and thus the bending radius and weight of the cable.

Cable Composition

Conductor: fine oxygen-free bare copper wire, multi-stranded soft conductor, in accordance with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standards.
Insulation: high-strength modified PVC or PE with excellent electrical insulation properties, colour coded or number coded (can be customized according to customer requirements).
Cable formation: short pitch stranded, 12 cores and above using composite cable structure.
Shielding: copper mesh braided shield, braiding density ≥ 85%.
Sheath: high strength and low viscosity special PVC composite material.
Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements)
Cable technical parameters

Rated voltage: ≥0.5mm, 300/500V
Test voltage: 2000V
Insulation resistance: ≥20MΩ/km (20℃)
Zui small bending radius: mobile use: 7.5X cable outer diameter, fixed installation: 4X cable outer diameter
Temperature range: Mobile use: -5℃~70℃, Fixed installation: -20℃~80

Ask
How to tell the difference between highly flexible cables?

Answer
Highly flexible wires are generally distinguished by material and process, which is difficult for non-professionals. There is a popular view that the simpler way to distinguish the high flexibility wire is to look at the wire diameter of the copper wire, the finer the wire diameter, the higher the quality of the high flexibility wire. This kind of only focus on the surface phenomenon of high-flexible wire, do not understand the essence, there are obvious errors in the viewpoint, but by the bad manufacturers to take advantage of, resulting in high-flexible cable market chaos.

Ask
What is the simpler way to identify the quality of the drag chain cable is to look at the wire diameter of the copper wire?

Answer
The wire diameter of the copper wire of the cable conductor may be able to distinguish the drag chain cable from the ordinary cable, but not the quality of the drag chain cable. Some cable manufacturers are not aware of the nature of what makes a drag chain cable durable and focus only on imitating the surface form of a drag chain cable. Thinner copper wires do increase the flexibility of the conductor, but drag chain cables are not just copper wires. If the wire diameter of copper wire is the determining factor of the quality of the drag chain cable, then not to mention the imported high-end drag chain cable brands, at least the domestic drag chain cable brands in the selection of conductor copper wire has long been a unified standard.
