High Flexibility Shielded Data Cable manufacturer, focus on the field of flexible cable, factory direct sale, quality assurance.

Highly flexible shielded data cable is used for occasions that require frequent continuous repetitive movements, and is also suitable for situations where there is free movement with moderate mechanical stress.

Shielded cable using braided shielding so that the cable has a strong resistance to external electromagnetic interference, to ensure stable transmission of data and signals.

The cable is designed with non-internal protection, which greatly reduces the outer diameter of the entire cable, thus reducing the bending radius and weight of the cable.

Highly flexible data transmission cables are used in drag chains and moving mechanical parts, and are more effective when used with drag chains.

Composition

Conductor: fine oxygen-free bare copper wire, multi-stranded flexible conductor, in accordance with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standards.
Insulation: high-strength modified PVC or PE and other materials with excellent insulation and electrical properties, colour differentiation, no repetition (can be customized production according to customer requirements)
Shielding: Copper mesh braided shielding, braiding density ≥ 85
Outer sheath: high-strength low viscosity special PVC composite material;

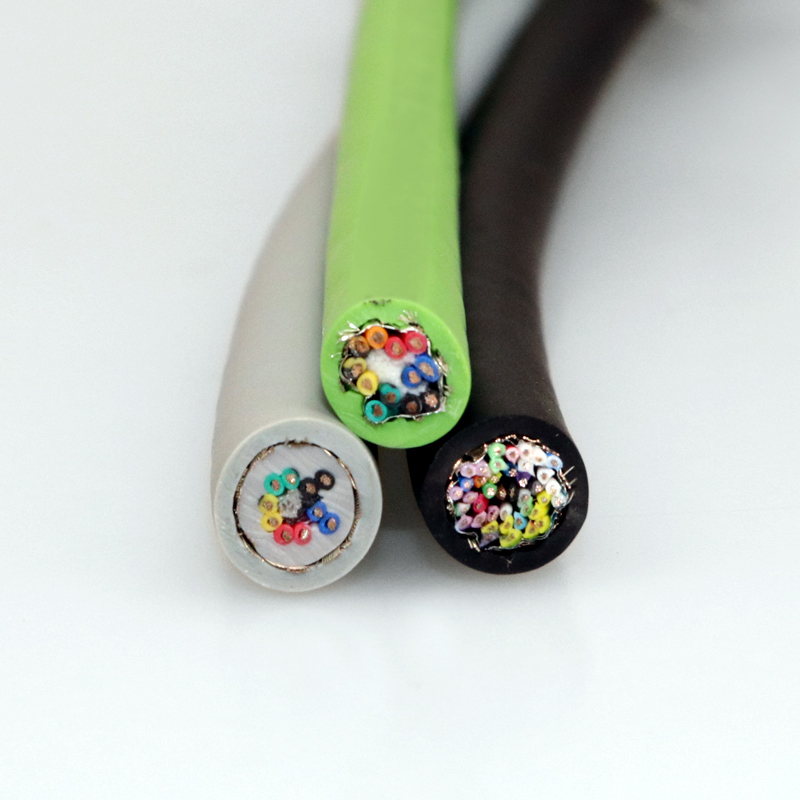

Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements)
Technical parameters

Rated voltage: <0.5mm2, 300/300V; ≥0.5mm2, 300/500V
Test voltage: 0.14mm2: 1200V, >0.14mm2: 1500V
Insulation resistance ≥20MΩ/km (20°C)
Zui small bending radius: mobile use: 7.5X cable O.D., fixed installation: 4X cable O.D.
Temperature range: Mobile use: -5°C~70°C, Fixed installation: -20°C~80°C

Ask
Is the number of drag chain bends that the drag chain cable can achieve a gimmick?

Answer
The number of times the drag chain cable can reach the bending of the drag chain is determined by the environment, bending radius, stroke, speed or frequency, the condition of the drag chain and its wiring and many other factors, if the number of times the drag chain bends under a certain condition is 5 million times, relaxing the test conditions and having enough time, the number of times the drag chain bends can be up to 50 million times or even higher. Therefore, to determine the number of times the cable can reach the drag chain bending is the test conditions. Under too loose conditions, the number of bending times of drag chain cables tested is a gimmick, and the higher the number of bending times of drag chain cables is, the better.

Ask
Do I have to use a drag chain cable in a tank chain?

Answer
Tank chain, also known as drag chain, also known as wire and cable protection drag chain (Cable carrier), is a kind of binding cable or wire or air pressure pipe and oil pressure pipe to facilitate its rotation and movement of the device. Because the work needs to follow the tank chain system to bend back and forth, the cable must have high flexibility, strong toughness, bending resistance, abrasion resistance, drag characteristics, it is best to use the drag chain special high flexibility cable.
