There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

1.Application:
Fixed wiring,civil power,mobile equipment

2.Construction

Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5~400mm2
We can according to our client's need and also provide technical data

3.Characteristic

Rated Voltage:
450/750V More-than 1.5mm2 single core conductor
300/500V Less-than 1.5mm2 single core and multicore conductor
300/300VLess-than 1.5mm2 multicore conductor

Test Voltage:
AC 1500V/5Min for 0.5~1mm2 multicore conductor
AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor
AC 2500V/5Min Other.

Color of Insulation:
Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.

Notes
1, Ambient temperature for insulation shall not be lower than 0ºC.
2, At nominal conditions, the conductor's operating temperature is -15ºC to +70ºC
3, Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.

4.Standard
IEC 60227-2007  or as per customer's request

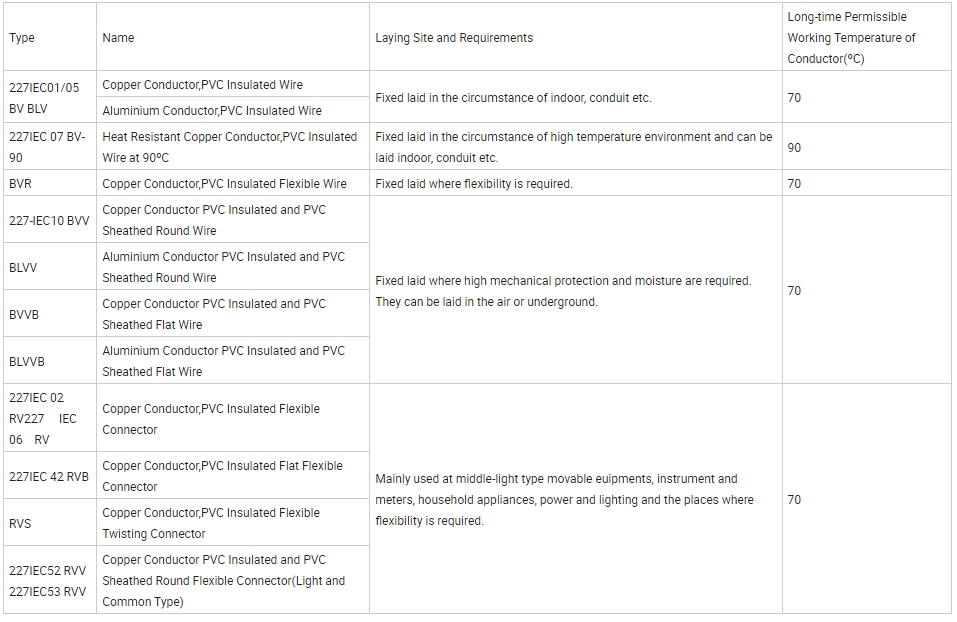

Some Type (Remarks: we can design and produce according to customer's request.)
