Applications

These control, signalling and bus cables are used for electric and electronic equipment, such as for measured value and process data processing and automation units in open-cast mining applications, suitable for laying alongside conveyor belts and on material handling equipment.

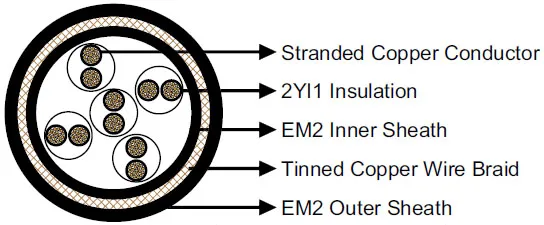

Design features
Conductor Finely-stranded copper conductor (class 5)
Insulation Basic material: Polyethylene (PE),
Compound type: 2YI1
Core identification Cores white with black digits imprinted
Core arrangement Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopic material over the conductor assembly
Inner sheath Basic material (special compound type): Chlorinated rubber, Compound type: EM2
Screen Screen braiding of tinned copper wires between inner and outer sheath
Outer sheath Basic material (Special compound type): Chlorinated rubber, Compound type: EM2

Electrical parameters
Rated voltage 250/250 V
Maximum permissible operating voltage AC 0.350 (peak value) kV
Maximum permissible operating voltage DC 0.350 (peak value) kV
AC test voltage 1.5 kV

Thermal parameters
Max. permissible temperature at conductor 60 °C
Max. short circuit temperature of the conductor 150 °C
Ambient temperature for fix installation min. -40 °C
Ambient temperature for fix installation max. 60 °C
Ambient temp. in fully flex. operation min. -25 °C
Ambient temp. in fully flex. operation max. 60 °C

Standards

VDE 0250 Part 812
