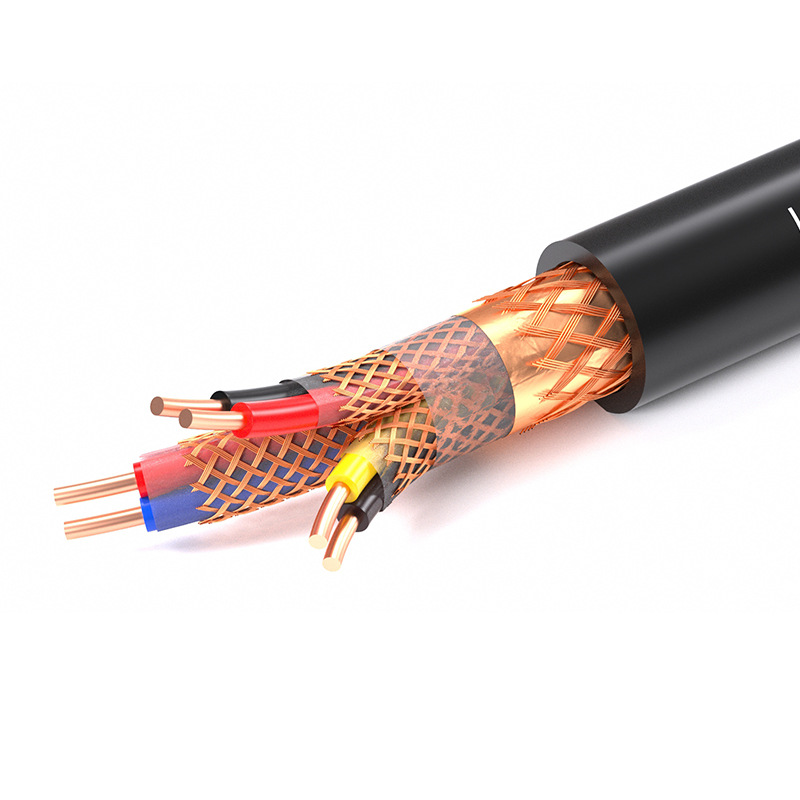

Shielded Twist Pairs DJYVPR computer cable

PVC control power cables have the advantages of not only good electrical properties
And chemical stability, but also simple construction and convenient to use.

It applies to electrical power transmission and distribution lines with A. C. Rated
Voltage U0/U up to and including 450/750V.


1 UO/U: 450/750V

2 Standard applied: IEC60227, BS6500, VDE0250, GB/T9330

3 Max working temperature: 70C

4 Conductor: Annealed bare copper solid or strands

5 Insulation: PVC

6 Cores: Twisted Pair 1~16 pairs

7 Cross section areas: 0.750mm2~1.5 mm2

8 Armore: Without armored

9 Color: Red, blue, white for active core, green/yellow for earth core, black for sheath.

10 Certificate: : CCC

11 Roll package Wooden drum or as requested

12 Remark: The cable can be of flame retardance, fire resisrance and other property
