There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

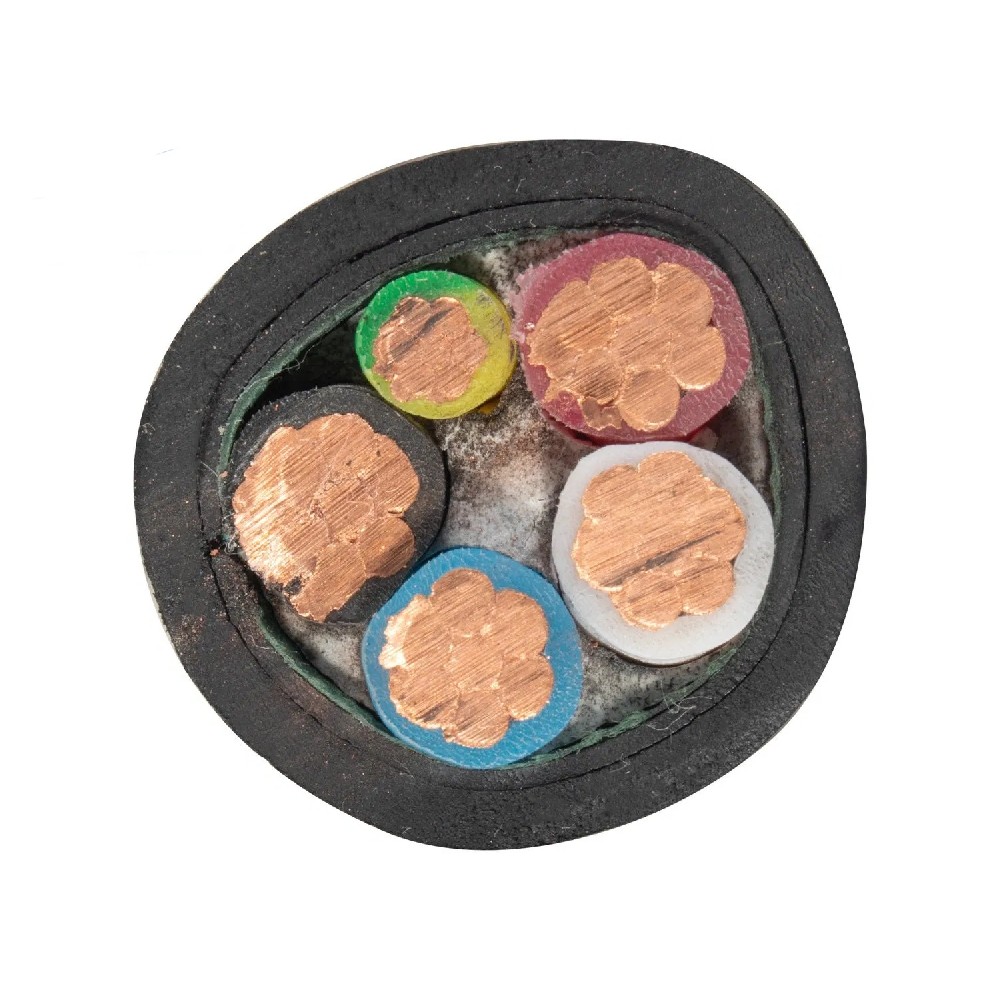

1.H05RN-F H07RN-F Rubber Cable

This cable is primarily used in all kinds of electrical equipment, such as the mobile power of household appliances, electric machinery,
electrical equipment and tools, and it is also can be used in indoor or outdoor enviroment conditions.

Conductor: Stranded bare or tinned soft copper wire

Insulation: EPR (Ethylene-Propylene Rubber)

Sheath: Neoprene (Chloroprene rubber)


2.Specification And Working Condition:

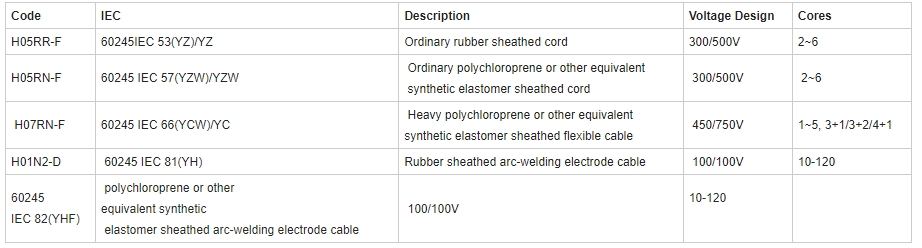

1)The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is 300/500V,YC/YCW type(H07RN-F) is  450/750V.

2)The long-term working temperature allowed by conductor should be not more than 60 ° C.

3)W-type cable with climate resistance and oil resistance, suitable for outdoors or in contact with oil occasions.

4)ZR type cable has flame retardant properties, can be used for fire-retardant occasions.

3.Advantages Of H07RN-F:

The H07RN-F cable is used at medium mechanical stress in dry, wet and damp locations, as well in free air.
Also for fixed installation on plaster or machines. The cable is resistant to oil, UV-radiation and ozone.

Flexible
The H07RN-F is a flexible cable, ideal for mobile use.
This means that the cable can be used several times and can be applied for temporary purposes.
In addition, it is easy to handle and pliant making it easy and compact to store.
Its flexibility is also an advantage for small-spaced fixed installations as smaller bends can be made. Due to the flexibility of the cable,
it is easier and faster to install, which saves more time and reduces costs.

Oil Resistant
The H07RN-F is oil resistant which means the cable can withstand aggressive oil containing substances.
These substances will not affect the cable, the functionality of the cable will be maintained and the risk of irreparable damage is lower.

UV Resistant
Cables that are not UV resistant will be affected when they are exposed to direct sunlight.
The H07RN-F is UV resistant and can therefore be used above ground in the open air.
The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath.
This will preserve the functionality of the cable.

Flame Retardant
Cables used to be responsible for spreading fire. The H07RN-F is flame retardant.
This means that this cable is designed in a way that it will not spread fire.
Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.
