1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1

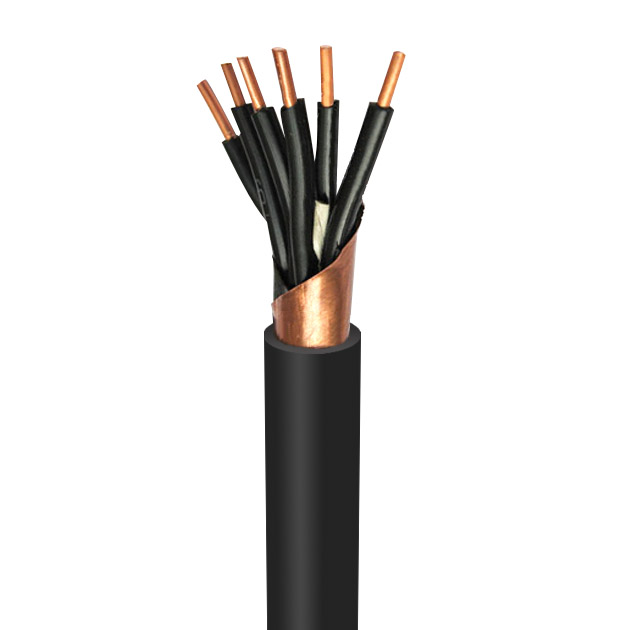

2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multicore stranded
2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armour layer): PVC/PE
2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outersheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750v
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
