APPLICATION

AC90 is designed for exposed and concealed wiring such as ventilated cable trays and other dry locations,
where the maximum conductor temperature will not exceed 90°C. Meets cold bend and impact tests at -40ºC.

CONDUCTOR COLORS

 • For 2 conductor constructions: black and white circuit conductors plus a bare copper bonding conductor.

• For 3 conductor constructions: black, red and white circuit conductors plus a bare copper bonding conductor.
• For 4 conductor constructions: black, red, blue and white circuit conductors plus a bare copper bonding conductor.

SPECIFICATIONS

AC90 cables meet or exceed the following requirements:
• Spec. C22.2, No. 51 - Armoured Cables
• File Listing: LL90458
• -40°C Cold Temperature Rating

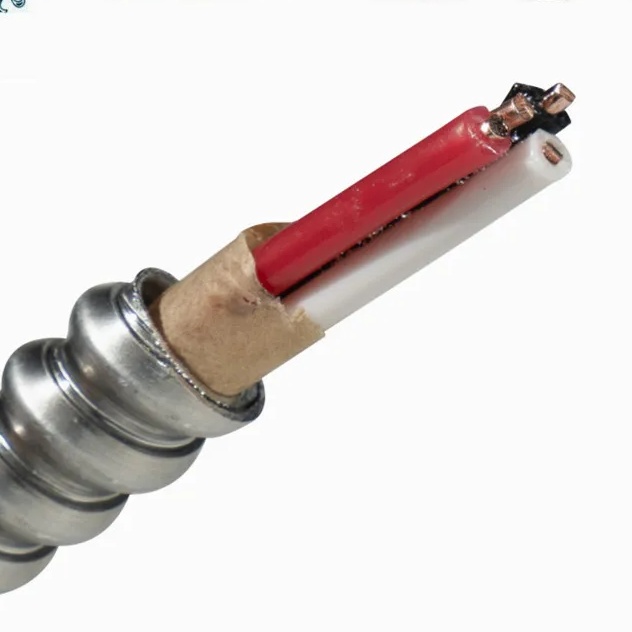

CONSTRUCTION

Solid copper circuit conductors, (No. 8 AWG and larger are stranded) with low temperature XLPE insulation (RW90),
copper bonding conductor, twisted assembly wrapped with a paper binder and covered with aluminum interlocking
armour. Rated 600 volts.

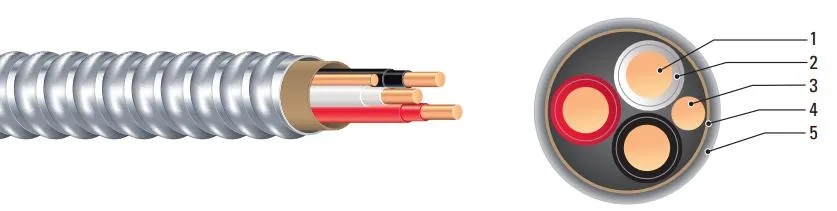

1. Copper Conductor
2. XLPE Insulation
3. Bare Copper Bonding Conductor
4. Oil Impregnated Kraft Paper Binder
5. Aluminum Interlock Armour
