There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application:
The cable can be used for overhead power transmission .  The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , etc.

CHARACTERISTICS
Voltage Rating
12/20 (24kV)
Temperature Rating
Operating temperature: +90ºC
Short Circuit: +250 °C
Minimum Bending Radius
Single core: 13 x overall diameter
During Installation: 26 x overall diameter
Multicore: 6 x overall diameter
During Installation: 12 x overall diameter

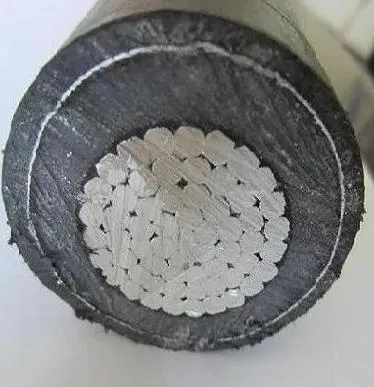

CONSTRUCTION
Conductor
Class 2 Aluminium stranded wire
Conductor Screen
Semi-conductive XLPE (Cross-linked Polyethylene) bonded to
conductor
Insulation
XLPE (Cross-linked polyethylene)
Insulation Screen
Grooved peelable semi-conducting XLPE (Cross-linked
Polyethylene)
Tightness powder in the grooves
Screen
Al/PET (Aluminium foil tape)
Outer Sheath
PE (Polyethylene)
