Application:For inclusion in wiring systems required to maintain circuit integrity under fire conditions. Wiring systems can be associated with firefighting, evacuation, emergency equipment, essential services and other safety functions in buildings, oil rigs, ships, and other structures.

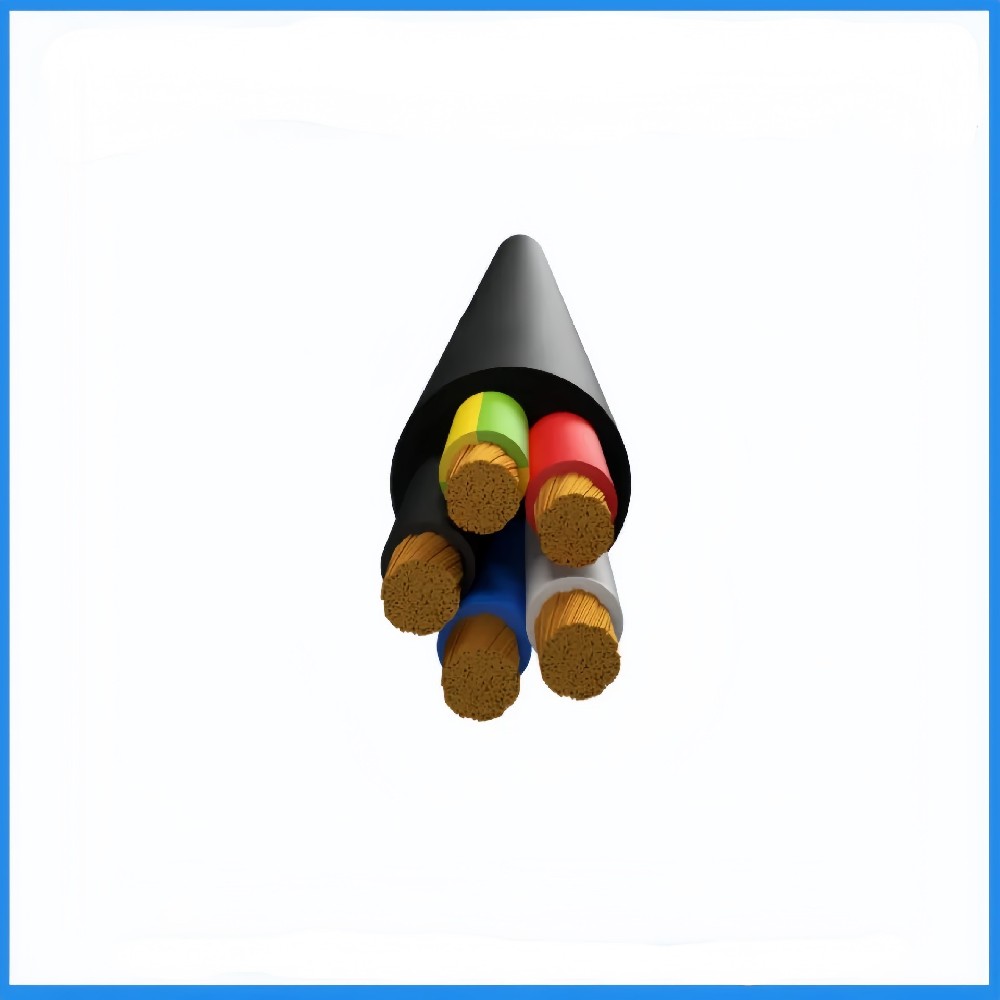

Multi Core range of Fire Resistant cable will maintain circuit integrity and life-                            saving essential services such as emergency and exit lighting, pumps and fans in the event of a fire.
Other sizes and configurations are available on request subject to minimum order quantities.

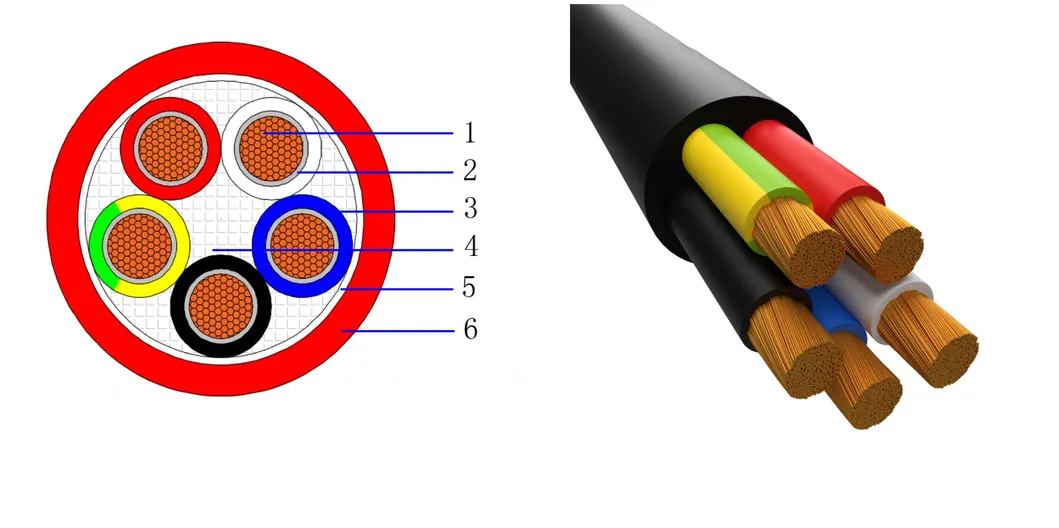

Core Identification:
Red, White, Blue, Black, Green/Yellow
Technical Data:
Voltage Rating:0.6/1kV
Operating Temperature:-40°C to +110°C
Short Circuit Temperature:250°C for 5 sec
Standards Compliance:
AS/NZS 3013
AS/NZS 3808
AS/NZS 1125
AS/NZS 1660
Features:
Flexible stranded copper conductor
Low Fire Hazard Cable ­ halogen free, low smoke, low corrosive/acid emissions and flame retardant materials
110ºC rated insulation and sheath
WS52W Fire Rated to AS/NZS 3013
RHE­3 to AS/NZS 4507
Cat A bunched flame propagation to IEC 60332­3
Meets physical property requirements of 125°C XLPO insulation to UL 1581
Benefits:
Flexibilitiy for fast, easy installation (10mm2 and above)
Contributes to the green star rating of your project
Safer evacuation and protection of essential safety systems
