There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

APPLICATION

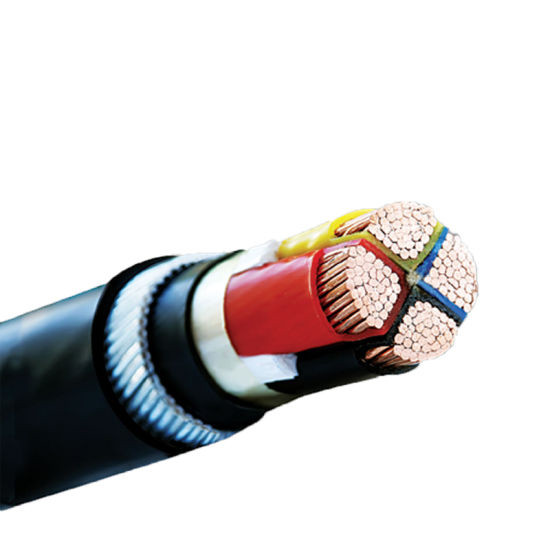

Low voltage power cable are used for electricity apply in low voltage installation system, low voltage power cable are suitable for installation in indoors, in cable ducts, underground, in power and switching stations, local energydistributions,industrial plants, where there is no risk of mechanical damage.


CONSTRUCTION

Low voltage power cable conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal- coated copper in accordance with IEC 60228.

Insulation PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.

Color Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals


Color Code (2):

1 Core: Brown or Blue

2 Cores: Brown, Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: Black Cores with White numerals

Other colors can be manufactured upon request.
