There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Voltage: 0.6/1KV
Model: YJV

Applications:

1. Power transmission

2. Electrical systems in buildings

3. Industrial control and automation

4. Transportation

Product advantage description:
The advantages of copper core power cables are mainly reflected in their physical and electrical properties, including low resistivity, high strength, good ductility, strong fatigue resistance, good stability, large current carrying capacity, low voltage loss, low energy consumption, low heating temperature, oxidation resistance and corrosion resistance.

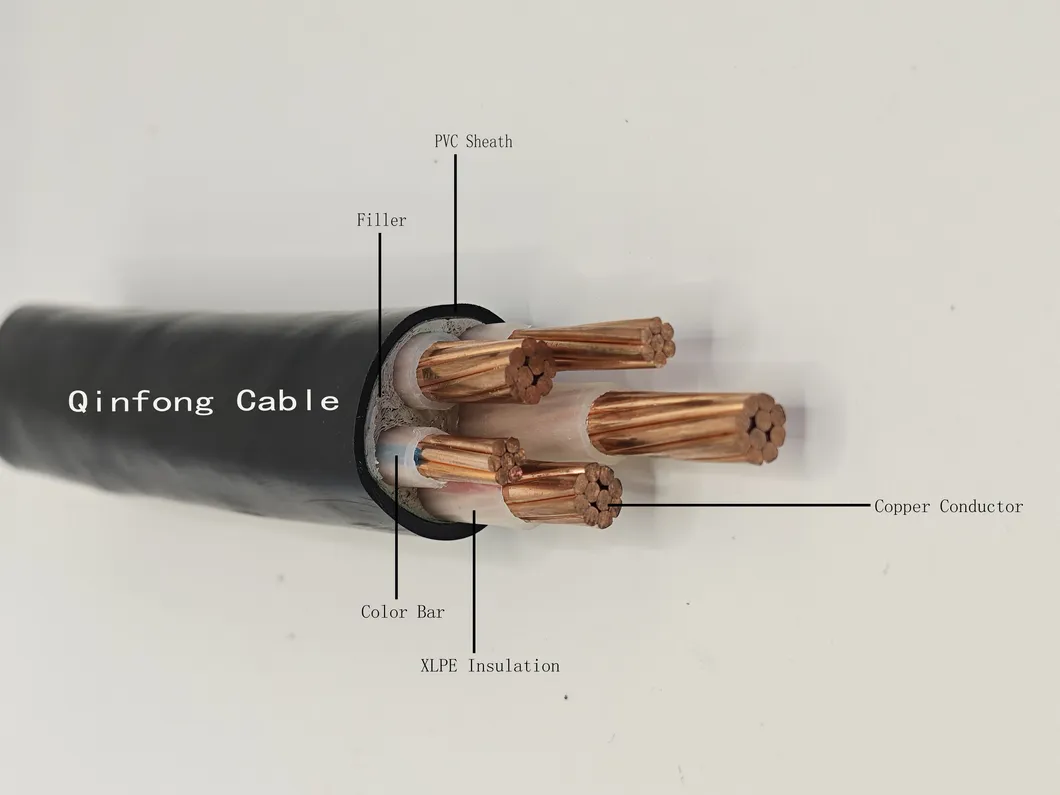

Conductor: Oxygen-free Copper
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Outer sheath: PVC/PE
Sheath color: Black

Physical property:
Maximum operating temperature of conductor:
70ºC (PVC insulation), 90ºC (XLPE insulation)

Minimum operating temperature:
-5ºC (PVC or LSZH sheath), -20ºC (PE sheath)

Short-circuit temperature (no more than 5 seconds) :
140ºC-160ºC (PVC insulation), 250ºC (XLPE insulation)
