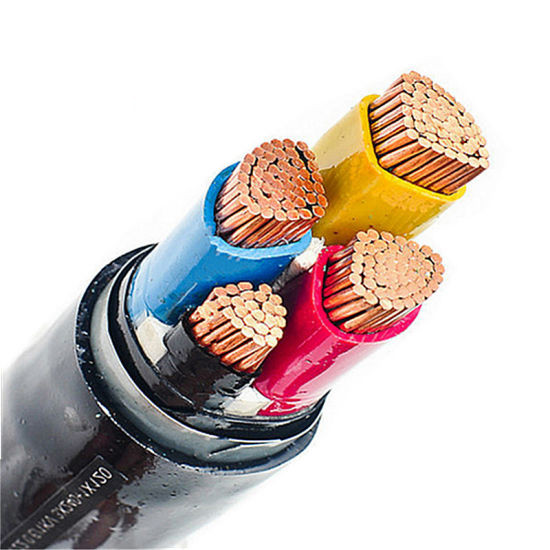

Cu conductor XLPE insulated power cable LOW VOLTAGE

Product Description

Top ten cable manufacturer in VIET NAM

Professional manufacturer

WITH ISO 9001, TCVN, IEC CERTIFICATIONS

 I Product Standard

This product is manufactured according to TCVN 5935, equivalent to IEC60502 -1 or TCVN 6612, equivalent to IEC60228

II Application

The product is suitable for power transmission and distribution lines with rated power  voltage 0.6/1KV.

Operating Performance

1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90ºC
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250ºC
4). The ambient temperature under installation should not below 0ºC
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
