There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Applications:

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

Standards:

Basic design adapted to BS 5308, EN50288-7

Fire Performance:

Fire Performance: Flame Retardance (Single Vertical Wire Test) EN 60332-1-2

VOLTAGE RATING 300/500V

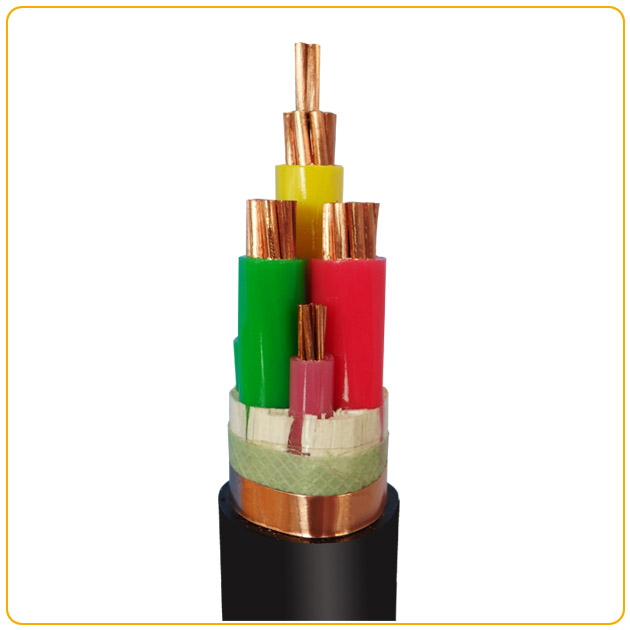

Construction:

1. Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
2. Insulation: Extruded cross-linked XLPE compound.
3. Filler, binder(if any): PP, Mylar tape
4. Circuit Protective Conductor: Annealed plain copper (class 2)
5. Overall Screen: Aluminium/polyester tape
6. Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
