There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

1 Constructure:

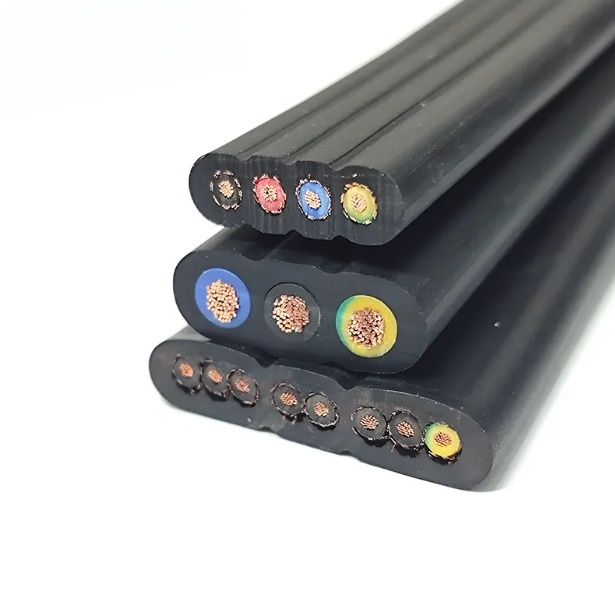

Product Name: ESP Cable
Temperature Rating: 90ºC,120ºC,150ºC,180ºC,204ºC,232ºC,260ºC
Voltage Range: 3kV,4kV,5kV,6kV,8kV
Standards: GB/T 16750,IEEE1017,IEEE1018,IEEE1019,API RP 11S5,API RP 11S6
Main Type: QYPN,QYPNY,QYEQ,QYEQNY,QYYEQ,QYYEQEY,QYYFF,QYYEE
Armor Materials: Galvanized Steel Tape,Stainless Steel Tape,Monel Steel Tape
Main Materials: Copper,NBR,EPDM,PI Film,Lead Sheath,PP,Fluoroplastic,Steel Tape etc.

2 Product Introduction:
The product manufactured by us has the characteristics of advanced technology, reliable quality.The main manufacturing equipment is included the ROYLE90 plastic extrude, the rubber continuous vulcanizing process, the interlocked armoring machine made by CEECO, Canada, the continuous sintering process imported from GRILLER, Austria, the Nokia cross-linked cable process, the advanced continuous annealing process and tinned process, etc. Now, the cable and coil end lead wire for submersible oil pump or pump unit can be produced, with different types and specifications, the crosssection of conductor is 42mm2 and below. The well temperature is from 50ºC to 180ºC, the max. continuous working temperature of conductor is 204ºC. The insulation material that can be used is as below: PP, EPR, polyimideF46, fluoroscopic, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer's requirements.

There are many types of cables, but the website demonstration is limited. If you need any cable, please contact us and we accept customization.
