Approval certificate IMQ HAR A2392

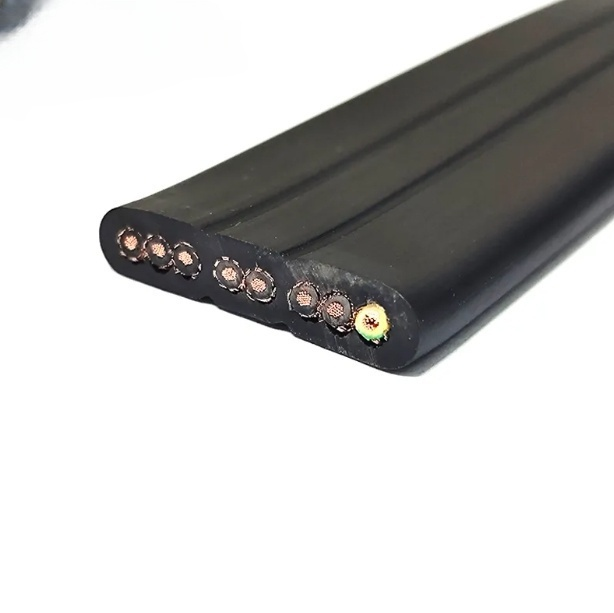

Flexible cables for lifts, restraining fire propagation Sheath colour BLACK

Reference rules

CEI 20-29 CEI EN 60228

IEC 228 conductor of isolated cables

CEI EN 50525-1 HD 21 IEC 227-1 PVC isolated cables of rated voltages up to and including 450/750 V.

CEI EN 50363 CEI 20-11 physical characteristic CEI EN 50214:2007 HD 359 S2

Flat PVC sheathed flexible cables

CEI 20-35

CEI EN 60332-1-1 test for resistance to vertical flame propagation for a single cable

CEI UNEL 00725 marking of cores electric cables

Electric characteristics

Nominal voltage Uo / U 300/500 V.

Testing voltage 2000 V.

Temperature -5° +70°

Max short circuit temperature 150°

Installation conditions

Cable for mobile specific laying

Free suspension lenght max 35 mt. Running speed 1,6 mt./sec.

Bending radius minimum 30 times thickness of cable

Tensile stress 15N for mm2 of copper cross section

Operating temperature 0°
