There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Used for power, control, and other internal and external connections of electrical appliances, instruments, power equipment, automation devices, etc.
T12 type insulation, compliant with DIN VDE 0281 Part 1+HD21.1
TM2 type sheath
Complies with EU harmonization standards
Compliant with ROHS and CE certifications
Typical application:
Used for movable connecting wires without forced traction or directional coupling inside and outside electrical appliances, instruments, power equipment, and automation devices. It can also be used in damp and oil-water mixture places.

Product Model:

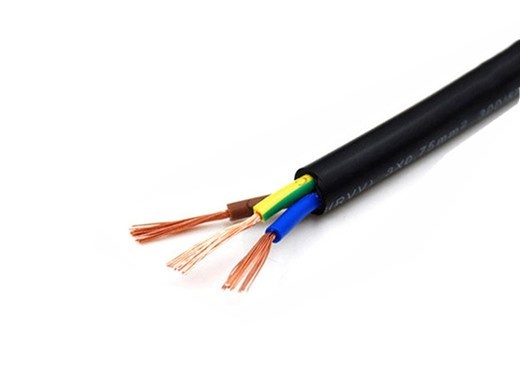

H05VV-F multi-core environmentally friendly insulated and sheathed CE certified cable

Application standards: HD21.5 S3、VDE-0281 Part-5、CE low voltage directive、73/23/EEC ＆ 93/68/EEC.IEC60227-5

Cable structure:
Conductor: oxygen free bare copper wire

Insulation: T12 type insulation, compliant with DIN VDE 0281 Part 1+HD21.1

Insulation resistance: 20M Ω xKM

Sheath: TM2 type sheath
Color: Black (RAL9005) Grey (RAL7001)
Rated voltage: UO/U 300/500V

Test voltage: 2000V in accordance with DIN VDE 0281 Part 2+HD21.2

Minimum bending radius:

Fixed installation: 4xD (cable outer diameter);   Mobile installation: 7.5xD (cable outer diameter)

Usage temperature: Fixed installation: -40 ℃ to+70 ℃;   Mobile installation: -5 ℃ to+70 ℃

Flame retardancy: Flame retardancy and self extinguishing comply with IEC60332-1-2+EN60332-1-2UL VW-1+CSAFT1, IEC60332.1
