Application
Suitable for dry, damp and wet locations but not in the open-air. It is used as a screened termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.

Standards:

DIN VDE 0281-13
HD 21.13.S1
DIN EN 60228 class 5 (construction)

core identification:

1 core green/yellow, other cores black with figures

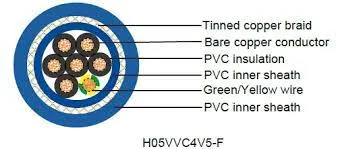

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC-mixture YI2)
3 ..... inner sheath of polyvinylchloride (mixture YM2)
4 ..... braiding of tinned copper wires
5 ..... outer sheath of polyvinylchloride ( PVC-mixture YM2), grey
