There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

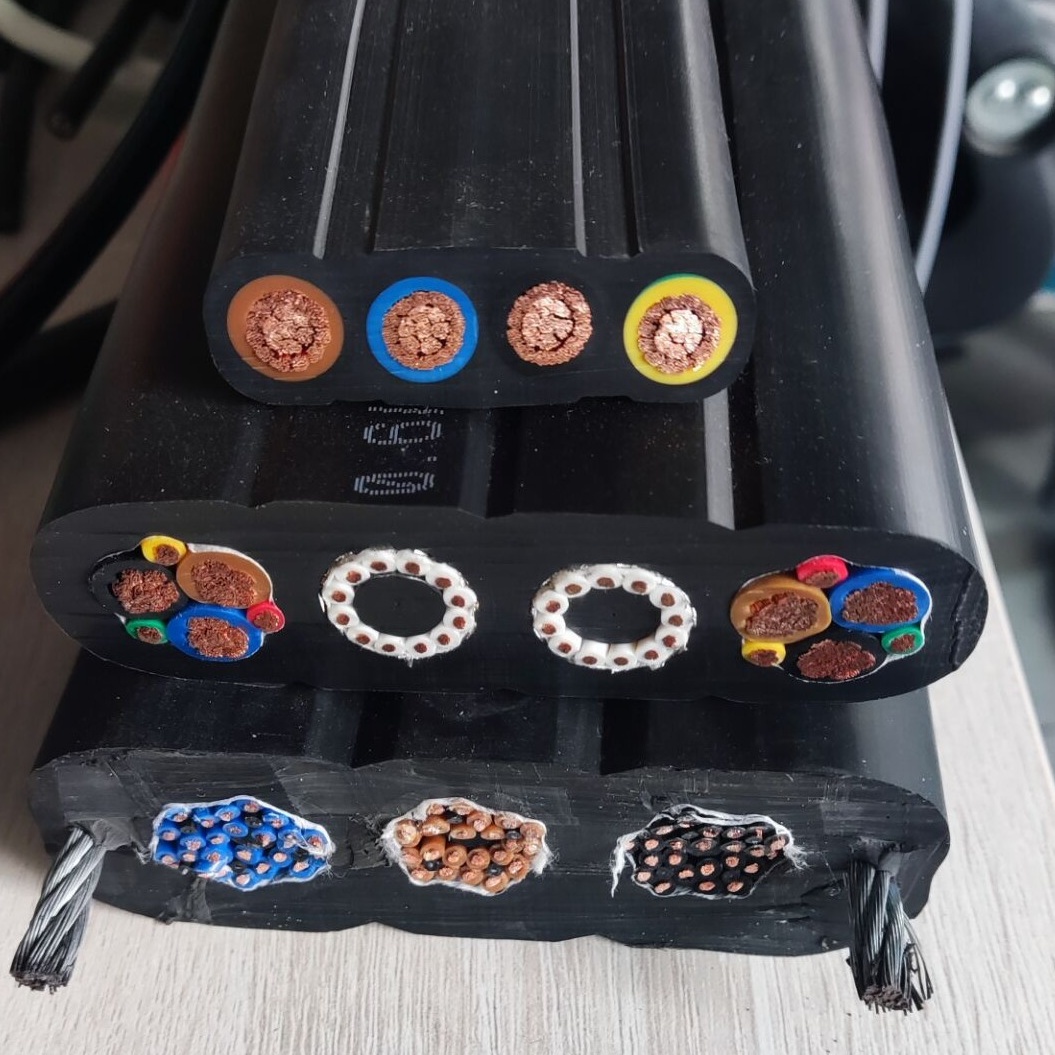

Suitable for hanging cables inside elevators, with a free hanging length not exceeding 80 meters and a moving speed not exceeding 4 meters per second. It can also be used as a drum cable for elevators and trains.

Conductor: Stranded bare copper wire or tinned copper wire

Insulation: PVC insulation material

Core wire structure: Horizontal arrangement or grouped arrangement

Reinforcement: Galvanized soft steel wire

Core wire differentiation: color separation or numerical coding

Sheath: PVC polyvinyl chloride sheath material

Sheath color: gray (RAL7001) or black (RAL9005)

Rated voltage: 450/750V

Test voltage: Insulation thickness ≤ 0.6:1500V

Finished product testing: 2000V

Minimum bending radius:

The allowable bending radius for cable laying and installation should not be less than 6 times the outer diameter of the cable.

Temperature range: -15 to+70 ℃
