There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Specifications:

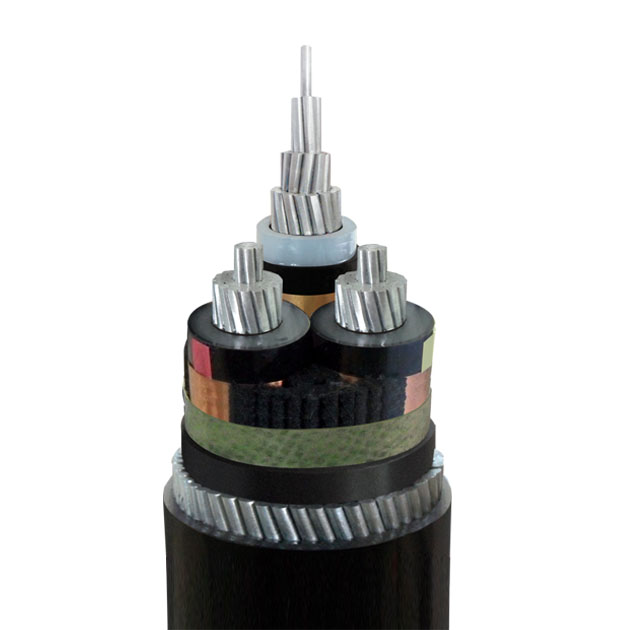

Application: The PVC insulated power cable are suitable for fixed laying in power transmission and distribution lines with A. C. 50Hz and voltage rating of up to or including 6KV.

Performance:

1. The long-term permissible operation temperature of the conductor shall not be higher than 70 degree
2. Conductor maximum short circuit((less then 5 second) temperature shall not be higher than 160 degree
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 degree
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6. Rated voltage: 0.6/1kV, 3.6/6kV
7. Conductors: Copper or Aluminum
8. Number of cores: One, two, three, four, five
We can produced  the cables as per GB, IEC, BS, VDE, AS/NZS, ICEA,JIS
