Highly flexible shielded servo cable manufacturer, focusing on the field of highly flexible cable, factory direct sale, quality assurance.

Highly flexible shielded servo cables are used where frequent continuous repetitive motion is required, and are also suitable for situations where there is free movement with moderate mechanical stress.

Highly flexible servo double shielded cable integrates control and power connection in one, as the connection cable between inverter, servo controller and motor.

Shielded cables for servo motors can effectively eliminate and reduce the interference generated by peripheral cables.

Highly flexible servo shielded cables are used in drag chains and moving mechanical parts, and are more effective when used in conjunction with drag chains.

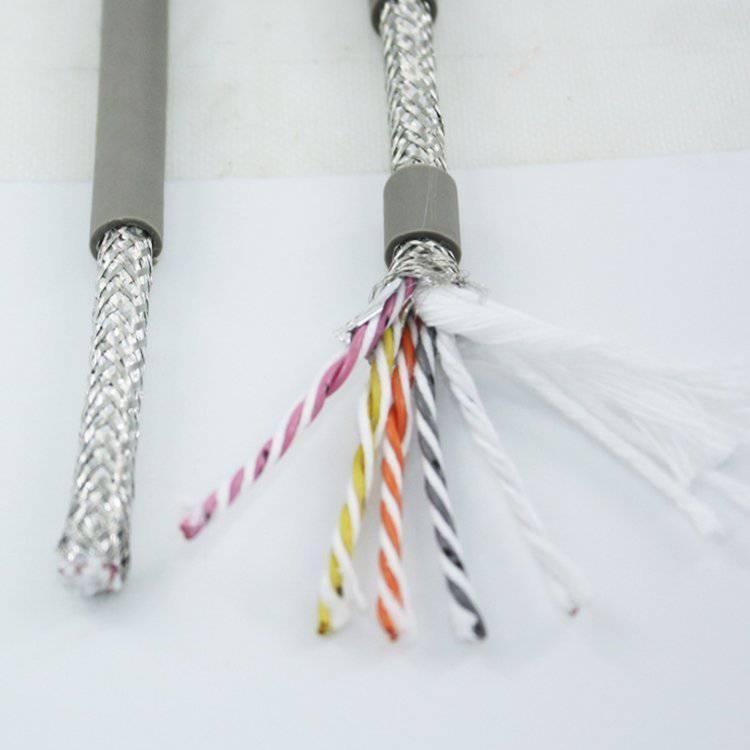

Composition

Conductor: fine oxygen-free bare copper wire, multi-stranded stranded soft conductor, in line with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standards
Insulation: high-strength modified PVC or PE materials with excellent insulation and electrical properties, colour differentiation, no repetition (can be customized according to customer requirements to produce)
Cable formation: short pitch stranded, 12 cores and above with composite cable structure.
Stranding: Stranded insulated wire pairs are twisted into cable with reasonable pitch.
Shielding: aluminium foil shielding (optional) plus copper mesh braided shielding, braiding density ≥ 85% (shielding can be customized according to customer requirements)
Sheath: High strength and low viscosity special PVC composite material;
Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements)
Technical Parameters

Rated voltage: data cable: 300V; power cable: 300/500V, 0.6/1KV.
Test voltage: data cable: 1500V; power cable 1500V, 3500V
Insulation resistance ≥ 20MΩ/km (20°C)
Zui small bending radius: mobile use: 7.5X cable outer diameter, fixed installation: 4X cable outer diameter
Temperature range: Mobile use: -5℃~70℃, Fixed installation: -20℃~80℃.

Ask
Why is the bending resistance of high flexibility drag chain cable getting higher and higher?

Answer
There are no more than 3 reasons for the increasing bending resistance of highly flexible drag chain cables: the first reason is the refinement of the technology; the second reason is that the drag chain test field of the cable is subdivided, the application field is different, the life of the cable is different; the third reason is that it reduces the test conditions.

Ask
Can I judge whether a drag chain cable is good or bad by the number of times it bends?

Answer
It is necessary to analyse the situation and the specific problem. For the drag chain cables produced by the same manufacturer, the number of bending times of the drag chain cable may be able to judge whether the drag chain cable is good or bad. However, it is not good to judge the drag chain cables produced by different manufacturers. The drag chain bending test of cables is carried out in dynamic environment, if we want to compare the drag chain bending times of different brands of highly flexible cables, we have to build the same test environment.
