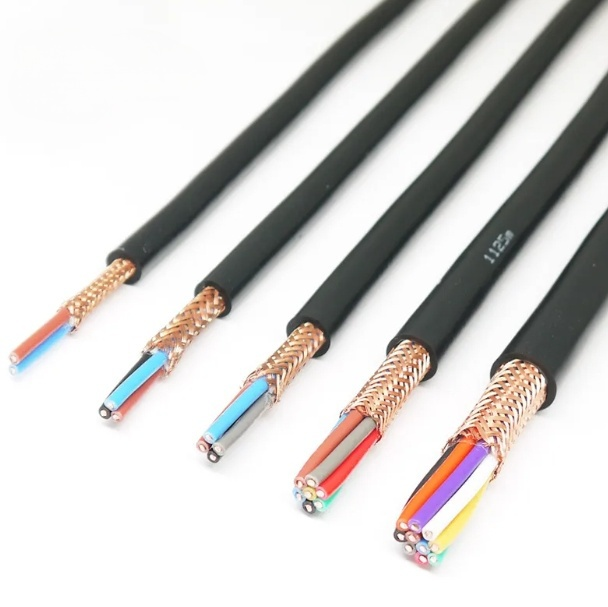

Li2YCYv-TP is a CE approved, flexible, oil-resistant, overall shielded, PVC multi-pair European low capacitance data transmission cable with a reinforced black jacket for underground use. For use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry and damp conditions. Commonly used for interference-free transmissions of data and signals over a long distance. Suitable for higher transmission speeds for RS-422 and RS-485 interfaces. This cable is specially designed for fast and cost-effective connections using Termi-Point® and solder-free connection techniques. The tinned copper braid shield offers additional protection against electrical and electro-magnetic interference (EMI).


Construction:
Bare copper strands
7-wire strands to VDE-0881 for Termi-Point®
PE insulation compound 2Yl1 to DIN VDE 0207
Color code DIN47100 - with color repetition
Cores twisted into pairs with optimal lay
Plastic foil separator
85% tinned copper braid
PVC jacket to VDE 0207 Part-5
Reinforced outer PVC jacket - black
Suitable for underground laying
Technical:
Working voltage: 300 volts
Testing voltage: 2000/1000 volts
Flexing bending radius: 12 x Ø
Static bending radius: 7.5 x Ø
Flexing temp: -5º C to +70º C
Static temp: -30º C to +80º C
Flame retardant: IEC 60332.1-2
Insulation resistance: 5 GΩ x km
Mutual Cap (800 Hz): max 70 nF/km
Approvals:
CE Low Voltage Directive 2014/35/EU
RoHS compliant
