There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Voltage: 6/10KV,8.7/15KV,19/33KV,26/35KV
Model:  YJV22 YJV32 YJV42...

Applications:

1. Substation

2. Administration of Power Supply

3. Industrial plant

4. Outdoor, underground, underwater

5. Indoor and cable conduit

Advantages:
The advantages are mainly reflected in its good electrical conductivity, good corrosion resistance and oxidation resistance, maintenance and repair convenience.

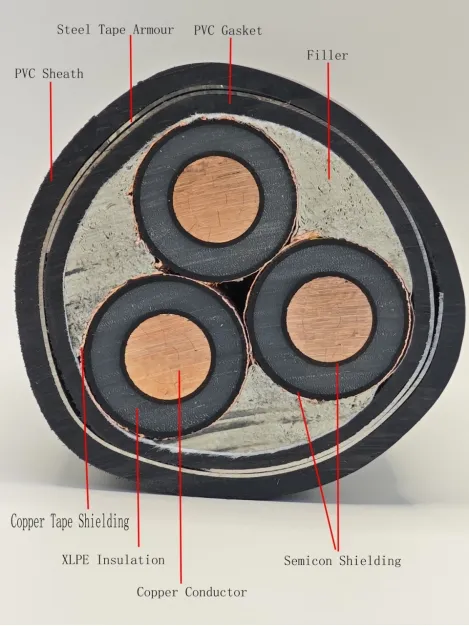

Conductor: Oxygen-free copper
Conductor shielding: Non-metallic semiconductor mixture
Insulation: Crosslinked polyethylene
Insulation shield: Non-metallic semiconductor mixture
Metal shield: Copper tape
Filler: Non-hygroscopic material
Binding: Moisture-proof non-woven fabric
Reinforcement: Steel tape armoring(To be customized)
Outer sheath: PVC/PE/LSZH

Physical property:
Conductor maximum operating temperature: 70ºC (PVC insulation), 90ºC (XLPE insulation)
Minimum operating temperature: -5ºC (PVC or LSZH sheath), -20ºC (PE sheath)
Short-circuit temperature (no more than 5 seconds) : 140ºC-160ºC (PVC insulation), 250ºC
