There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

This cable has good performance in fires and is mainly used in situations with dense personnel or flammable materials. Such as power stations, industrial facilities, public facilities, hotels, airports, subway stations, train stations, hospitals, department stores, banks, schools, cinemas, high-rise residential buildings, control centers, etc. Can be fixedly installed in dry environments, suitable for outdoor and underground installation, can be installed through pipelines, but not suitable for direct burial in soil or water.

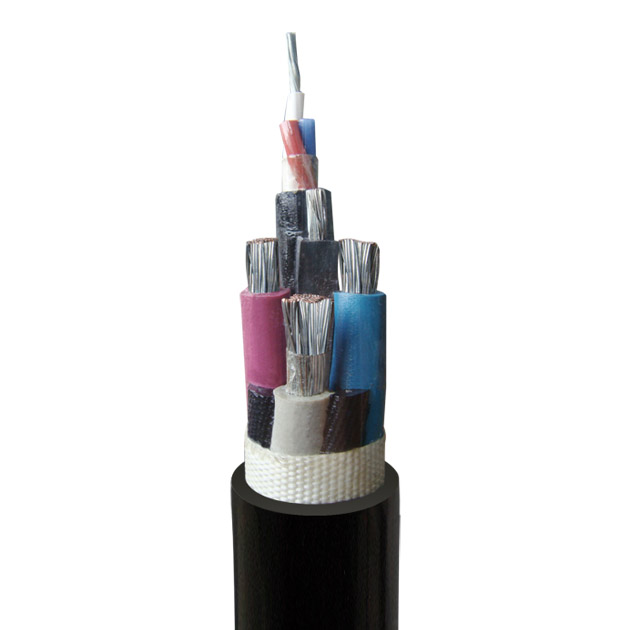

Conductor: Bare copper wire stranded conductor, meeting the requirements of Class 1 or Class 2 conductors in EN60228 standard

Insulation: Special cross-linked thermoplastic insulation material that meets the requirements of EN50363-5 standard

Core wire identification: Different colors are used for identification, and green/yellow grounding wires can be set

Outer sheath: Special halogen-free sheath material that meets the requirements of EN50363-8 standard

Sheath identification: Black sheath

Rated voltage: 0.6/1kV

Test voltage: 4000V

Operating temperature: Mobile installation -15 ℃ to+90 ℃

      Fixed installation -40 ℃ to+90 ℃

Minimum bending radius: 12 x cable diameter Ø
