There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

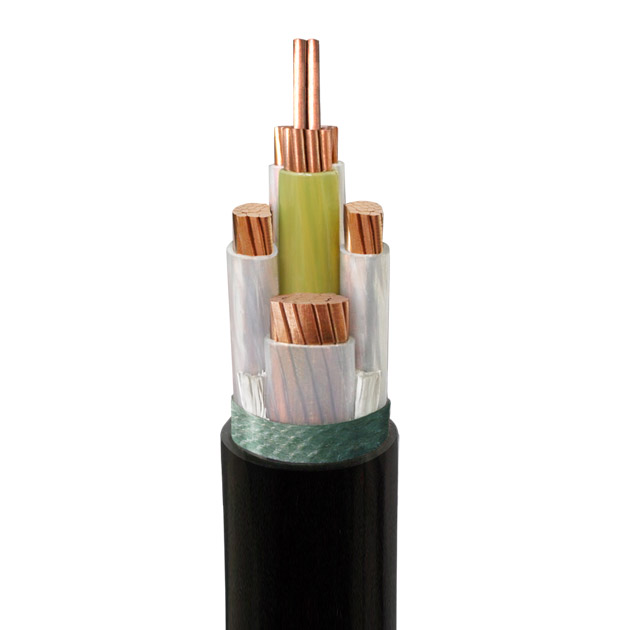

Widely applicable to industrial systems, power stations, building junction boxes, and street lighting. Can be used in applications that require increased power and mechanical protection. Can be installed outdoors, underground, in concrete, indoors, and in cable conduits. Concentric conductor layers can be used as grounding conductors or cable shielding layers. It has weather resistance and can be used outdoors.

Conductor: Bare copper wire stranded conductor, complying with the requirements of Class 1, 2 or 5 conductors in EN60228 standard

Insulation: Special PVC insulation material that meets the requirements of EN50363-3 standard

Core wire identification: using different colors for identification, including green/yellow grounding wires

Outer sheath: Special PVC sheath material that meets the requirements of EN50363-4-1 standard

Sheath identification: Black sheath

Rated voltage: 0.6/1kV

Test voltage: 4000V

Operating temperature: Mobile installation -5 ℃ to+70 ℃

      Fixed installation -20 ℃ to+70 ℃

Minimum bending radius: 12 x cable diameter Ø
