There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application:

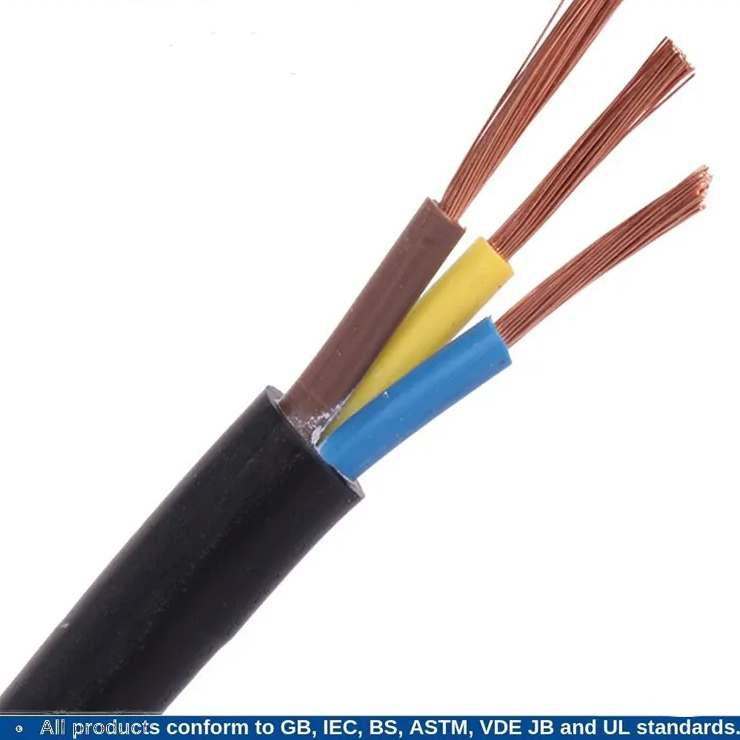

H07RN-F flexible rubber cable is a heavy-duty rubber sheathed cable for use on heavy equipment, such as machine tools and agricultural machinery, cabel h07rn-f is exposed to high stress in dry and damp rooms as well as outdoors and in damp industrial environments. Constant, operational movements, the use of these cables in moving cable carriers, respectively on motor drum guides or a stress of more than 15 N/mm² is not permitted.

Standard:
EN 50525-2-21, EN 60228
Flame Retardant according toIEC/EN60332-1-2

Conductor: Class 5 flexible copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
Voltage Rating (Uo/U): 450/750V

Temperature Rating :
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C

Minimum Bending Radius:
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
