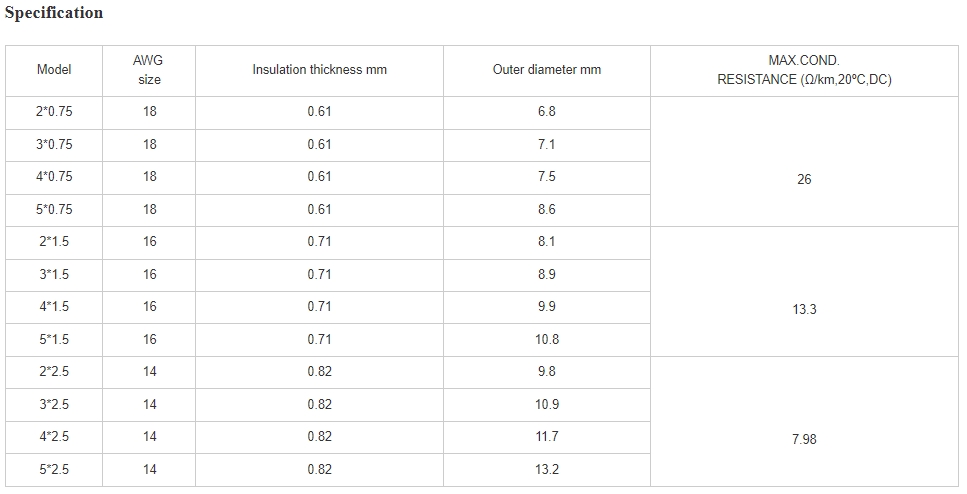

Specific parameter:

As a measuring, monitoring and control cable suitable for machine tool manufacturing, complete equipment installation projects,power stations, heating and air conditioning systems, refrigeration equipment, automatic office equipment, and data processing systems and other occasions.

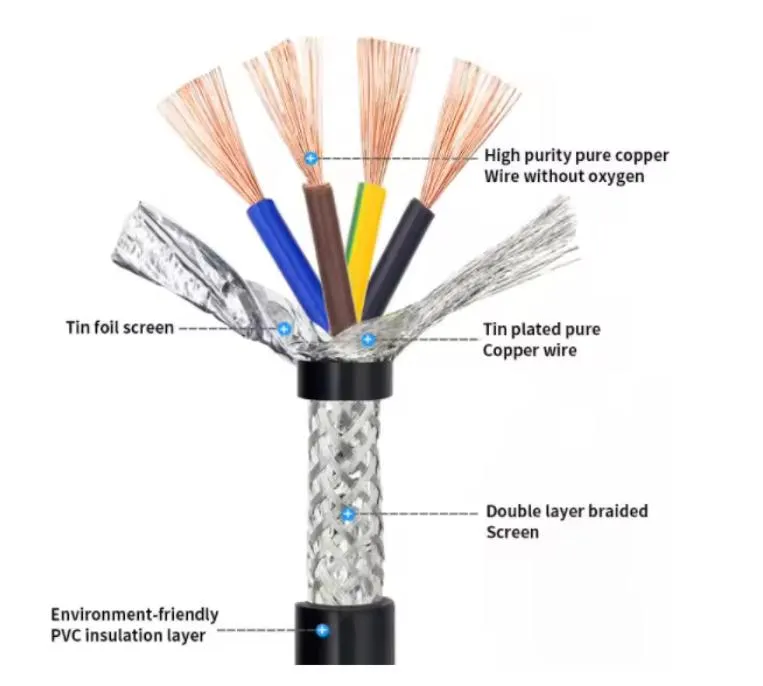

Polyvinyl chloride has good mechanical properties, excellent electrical insulation properties and excellent chemical stability.Due to the adoption of new aluminum foil Malaga copper mesh braided double shield, it can effectively resist electromagnetic interference.

Conductor: multi strand fine stranded oxygen free copper wire, conforming to VDE0295CLASS 5 standard.

Insulation: Special mixed PVC insulation.

Color :≤0.5mm Color expression, in line with JB8734 brown, black, light blue, purple, pink, orange, blue.

≥0.5mm black number white number number, more than 3 cores with yellow and green ground cable.

Lining: PP tape or foil Mylar wrap shielding.

Braid: bare copper wire or tinned copper wire braid shield.

Jacket: Mixed 70 degree PVC jacket, black (RAL9005) or grey (RAL7001)

DESINA standard color is also available according to customer requirements

Application standard :JB8734.5-1998 GB5023.7-2008

Minimum bending radius:

Mobile installation :15 X D(cable OD)

Fixed installation: 6 X D(cable OD)

Test voltage:

< 0.5mm² : 2000V

≥0.5mm² : 2500V


Operating temperature range:

Mobile installation :-10°C to +70°C

Fixed installation: -30°C to +70°C
