TRVVP is a flexible shielded drag chain cable, generally used in the existence of interference in the drag chain system, generally using copper wire braided network as the total shielding to ensure the stability and reliability of data transmission, is the more common shielded drag chain cable models in the domestic drag chain cable.

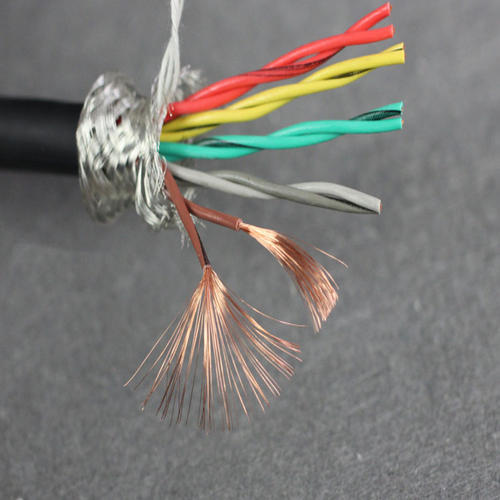

TRVVP shielded drag chain cable structure
Conductor: fine oxygen-free bare copper wire, multi-stranded, in line with GB/T3956 (VDE0295/IEC60228) Class5 or Class6 standards.
Insulation: high-strength imported PE material or modified PVC composite material, colour distinction (can be customized production according to customer requirements)
Filling: multi-stranded twine filling (different models vary)
Inner sheath: high-strength special composite sheath special material (different models vary)
Shield: bare copper mesh braided shielding, braiding density ≥ 70% (varies by model)
Outer sheath: high-strength low viscosity special PVC composite material
Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements)
TRVV shielded drag chain cable technical parameters:

Working voltage: Uo/U 300/300V or 300/500V

Test voltage: 3000V

Bending radius: fixed installation: 5x cable O.D.; mobile installation: 7.5x cable O.D.

Operating temperature: fixed installation: -5° C to 70° C; mobile installation: -5° C to 70° C

Characteristics of TRVVP shielded drag chain cables
Special PVC drag chain cables for drag chains are economical cables for drag chains.
Due to the special cable structure, this cable zui is characterised by good flexibility. Resistant to bending, folding, abrasion and oil, for mobile use under continuous reciprocating motion.
TRVVP shielded drag chain cable application areas
Widely used in CNC machine tools, vertical lathes, glass machinery, woodworking machinery, robot manipulators, cutting machines, engraving machines, door and window machinery and other automated machinery and equipment.

TRVVP shielded drag chain cable belongs to the common type of drag chain cable for engraving machine.

Ask
How to distinguish the high flexibility cable?

Answer
Highly flexible cables are generally distinguished by material and process, which is difficult for non-professionals. There is a popular view that the simpler way to distinguish the flexible wire is to look at the wire diameter of the copper wire, the finer the wire diameter, the higher the quality of the flexible wire. This kind of only focus on the surface phenomenon of high-flexible wire, do not understand the essence, there are obvious errors in the viewpoint, but by the bad manufacturers to take advantage of, resulting in high-flexible cable market chaos.

Ask
What is the maximum number of times a drag chain cable can be used when the outer diameter of the conductor copper wire is 0.1mm?

Answer
The conductor copper wire O.D. of drag chain cable is 0.1mm for up to 8 million times, and the conductor copper wire O.D. is 0.08mm for up to 10 million times. This conclusion should be a drag chain cable manufacturers on their own product development capabilities of the conclusion, and does not represent the entire drag chain cable industry. Conductor single copper wire is 0.08mm or 0.1mm, the service life of the drag chain cable is 8 million times or 10 million times, not in the conductor diameter of 0.02mm difference, but in the production technology.
