Application

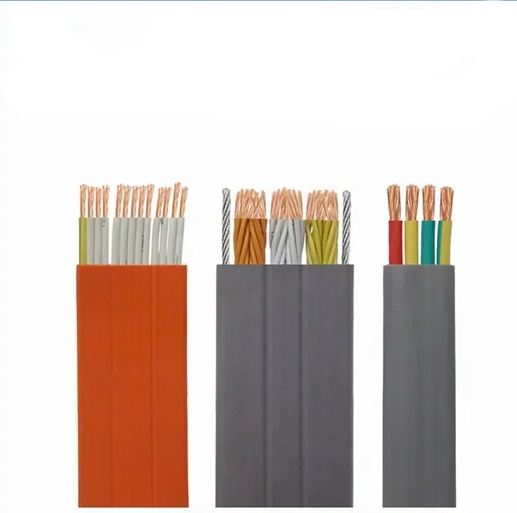

Elevator cables, also known as hoistway cables or moving cables, play a vital role in elevator operations. They are responsible for transmitting power and signals between the elevator car and the machine room or control panel. Here are some of the key applications and functions of elevator cables: power transmission, signal transmission, lighting and ventilation, communication systems, control systems, emergency systems, accessories, specialty applications, etc.

Elevator cables are designed to be flexible and durable, with features such as special insulation and sheathing to prevent wear and tear. They must be able to handle the constant movement and pressure associated with the vertical movement of the elevator car.

Use characteristics and technical performance

1.The rated voltage U0/U 0.6/1kV

2.Cable conductor long-term working temperature :PVC insulated, nitrile PVC insuated, thermoplastic elastic body insulaton does not exceed 70ºC;Silicone rubber isnualtion does not exceed 180ºC

3.The minmum bending radius shoule not less than 6 times of cable diameter

4.Cable lowest runtime environment temperature:PVC insulated is not lower than 0ºC;Nitrile PVC composite insulation, thermoplastic projectile insulation not below -20ºC;Silicone rubber insulation not bellow to -40ºC

5.20ºC conducror DC resistance in accordance with the provisions of the GB/T 3956-2008.

6.Power frequency voltage test:3.5kV/5min cable breakdown.
