There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application scope: Suitable for installation in dry or humid indoor environments, free continuous reciprocating motion without strong stress relief or forced guidance, bending applications in industrial use environments, such as woodworking machinery, machine tool processing equipment, logistics and transportation systems, crane joints, etc., with good electromagnetic shielding and anti-interference.

Product Features:
Waterproof, oil resistant, cold resistant, flame retardant
The bending life is longer than that of ordinary installation cables, but it is not used as a drag chain cable.

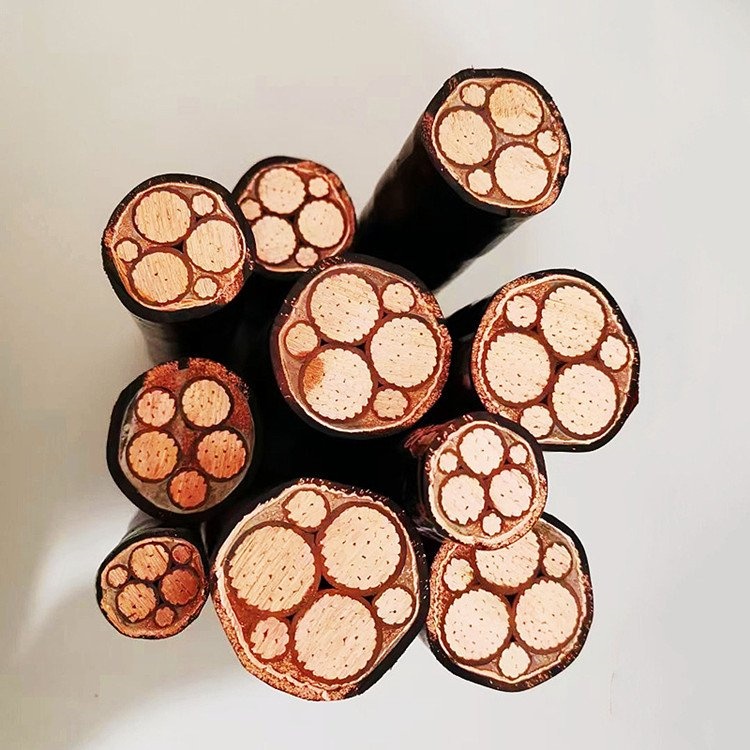

Cable structure:
Conductor: Multi strand ultra-fine precision twisted oxygen free copper wire, compliant with VDE0295CLASS 5 standard
Insulation: Special mixed PVC insulation
Color: Black number, white number, 3-core with yellow green grounding wire (yellow green optional)
Inner sheath: Modified low viscosity strong extrusion inner sheath, PVC material, oil resistant
Shielding: Tin plated copper mesh braided shielding, with a density of over 80%
Sheath: Transparent PVC Sheath;
            Orange (RAL2003)
            Black (RAL9005)
            Grey (RAL7001)
Rated voltage: ≤ 1.0 mm ²; 300/500V
                    ≥1.5mm²    450/750V
                    When installed with protection: 600/1000V
Test voltage: 4000V
Temperature range for use: Fixed installation: -30 ℃ to+70 ℃
                            Mobile installation: -10 ℃ to+70 ℃
Minimum bending radius: Fixed installation: 4 x cable outer diameter
                            Mobile installation: 15 x cable outer diameter
