There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

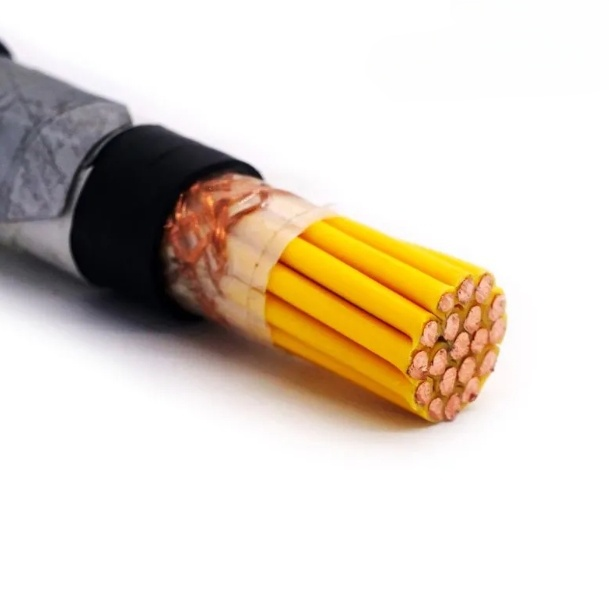

Copper core PVC insulated PVC sheathed armored shielded cable, laid indoors, in mobile environments such as cable trenches and pipelines that require shielding, is mostly suitable for areas with high signal interference.
Multi strand copper wire thin conductor. Steel belt armor, capable of withstanding certain mechanical external forces
Mainly laid indoors, in cable trenches, pipelines, direct burial, and other places

Typical application:
Installed indoors, in cable trenches, pipelines, direct burial, and other fixed locations. The use of control, monitoring circuits and protection lines, signal transmission, control and measurement of electrical instruments and distribution equipment. (such as measurement testing, signal display, self-test telemetry, computer networking, alarm, etc.)

Cable structure:
Conductor: multi strand fine copper wire
Insulation: PVC/A-type polyvinyl chloride insulation
Filler: PP tape or non-woven fabric wrapped for cushioning
Armor: Painted steel strip or galvanized steel strip with a thickness of 0.2mm Armor in accordance with GB/T2952.1
Sheath: ST1 PVC Sheath
Color: Black (RAL9005) Gray (RAL7001)
Rated voltage: 450/750V
Test voltage: Insulation thickness ≤ 0.6mm: 2000V Insulation thickness>0.6mm: 2500V External tested: 3000V
Minimum bending radius: Fixed laying: 12xD (cable outer diameter)
Temperature range for use:
Mobile installation: -10 ℃~+70 ℃
Fixed installation: -30 ℃~+70 ℃

Analysis of similar product models:
KVV22 rigid core PVC insulated PVC sheathed armored control cable
KVVR22 soft core PVC insulated PVC sheathed armored control cable
KVVP22 rigid core PVC insulated PVC sheathed shielded armored control cable
KVVRP22 soft core PVC insulated PVC sheathed shielded armored control cable
