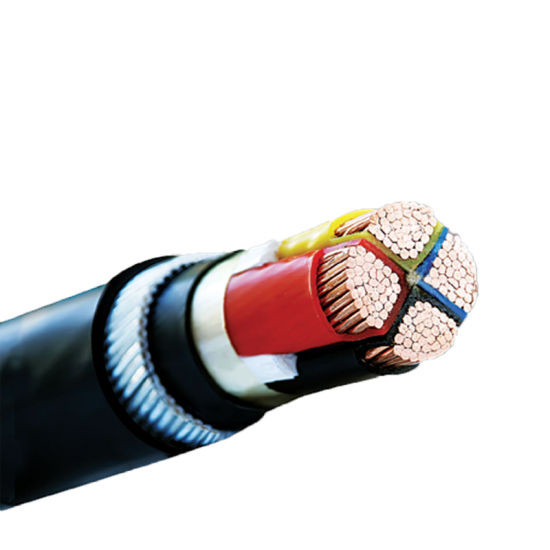

Construction:

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering  : PVC
Armoring       : Galvanized steel wire
Sheath         : PVC type ST2 to IEC 60502, black
Code Designation:
YJ: XLPE insulation
V: PVC sheath
32: Galvanized steel wire armoring
ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp.  0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request
