There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

 1 Standard:

    ul83.

 2.Construction:

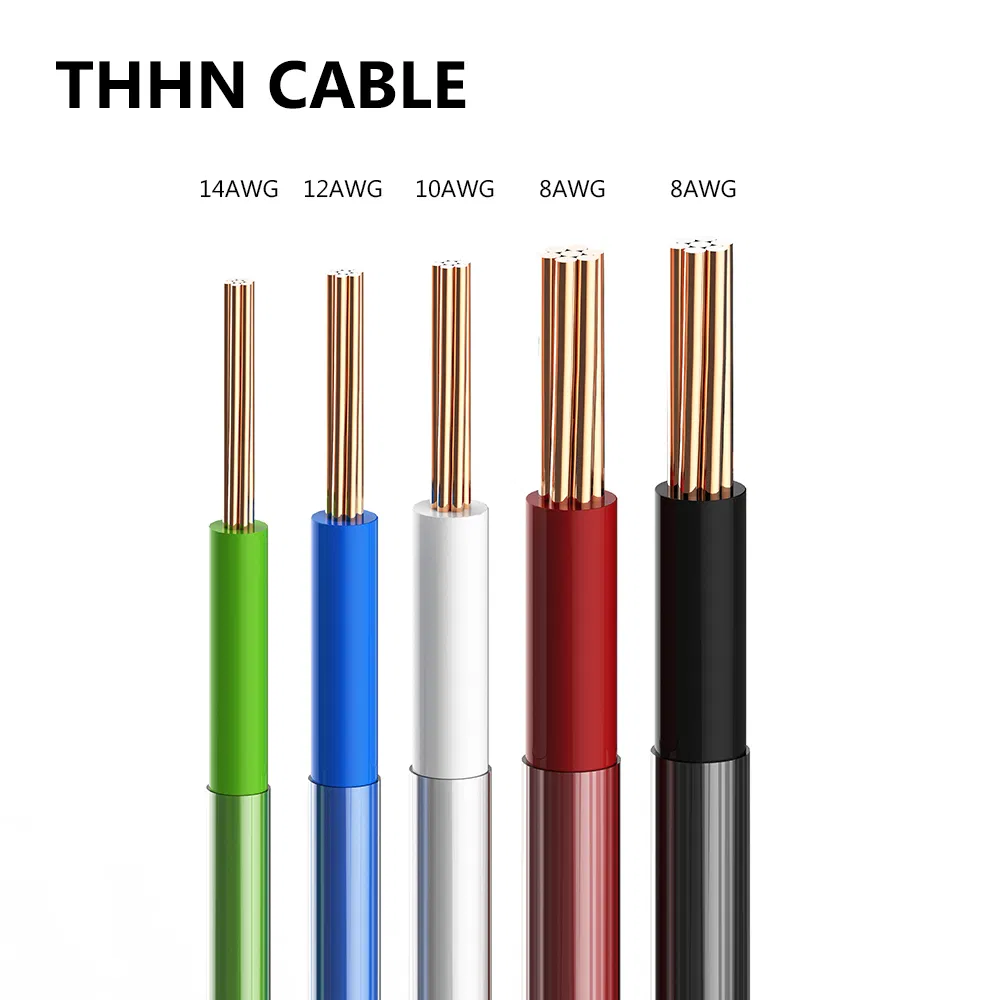

Conductor: Annealed Copper, solid or stranded sizes 14AWG up to 1000MCM

Insulation: Premium Grade Flame Retardant Polyvinyl Chloride( PVC)

Jacket: Tough Polyamide (Nylon)

3 Applications

General purpose building wire for services, feeders and branch circuits.

Temperature rating not to exceed:

THHN/THWN: 90°C dry and dump, 600V

THHN/THWN: 75 °C wet or in oil, 600V

THWN-2: 90°C Dry, wet or in oil,600V

4. Standard&Test Specification:

 THHN/THWN-2 Conforms to following standards:

UL83 for Thermoplastic Insulated Wire and Cables(THHN/THWN-2)
