Application

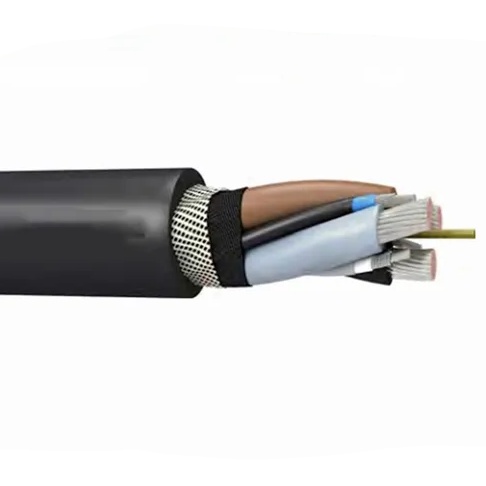

The cable is used for the connection of moving machinery under extremely high mechanical loads. It is especially suitable for mining environments. It can also be used by guiding pulleys (cable cars) or as reel cables (LHD) to withstand extreme bending forces, high tensile strength and impact. And squeeze the load.

standard

VDE 0250 Part 813

structure

Conductor: DIN VDE 0295 standard class 6 soft multi-strand copper conductor.

Insulation: EPR.

Monitor core (optional): special conductor, tinned copper braid and galvanized steel wire braid.

Inner sheath: Model GM1 rubber.

Armored/Grounding Conductor: Combination Copper - Wire braiding is both concentric and tensile.

Outer Sheath: 5GM5 type chlorinated rubber, abrasion resistant, tear resistant, oil resistant, flame retardant.

Characteristic

1.Supply to USA,Europe,and Austrilia, ect.
2.Cold resistant

3.Extremely strong oil and chemical
4.Flame retardant and self-extinguishing
5.Stable in ultraviolet radiation
