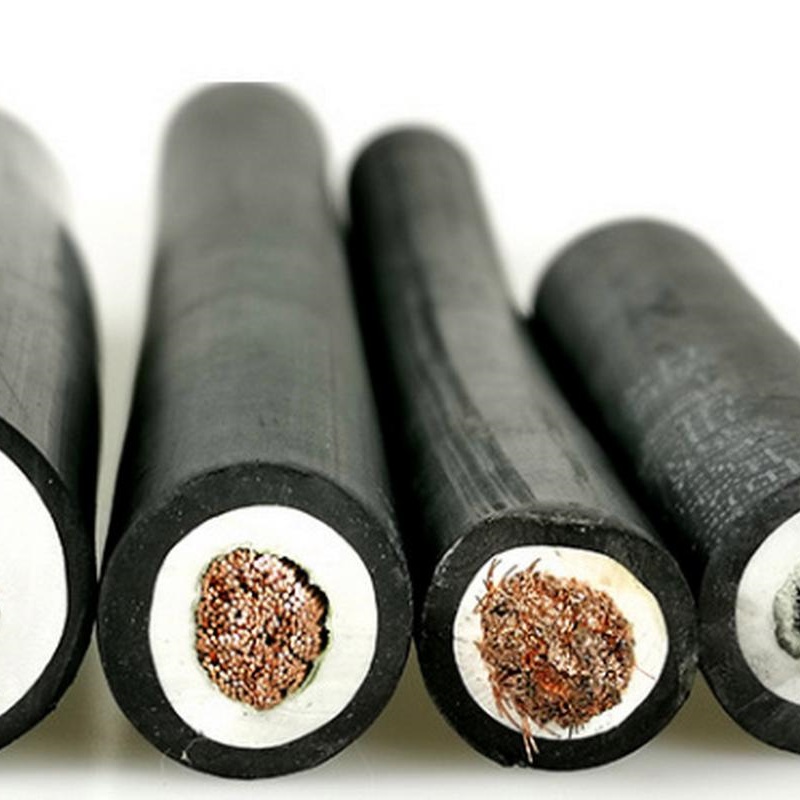

Wind energy special cables operate outdoors for a long time, suspended vertically, frequently twisted (automatic yaw to wind), exposed to oil pollution (partially), and corroded by seawater (special environment). High mechanical strength Requirements for resistance to torsion (softness), vibration, and oil. In addition, cables used in cold regions must also withstand low temperatures (-40 ° C).

Conductor: 99.9999% annealed oxygen free flexible copper wire

Insulation: PVC insulation is used

Core wire identification: color coded with yellow green ground wire, in compliance with DIN47100 standard

Filling reinforcement components: high-grade polyester cotton thread, special aramid fiber, special tensile reinforcement components, special galvanized soft steel wire, etc.

Core cabling: Adopting a special twisting method for drum winding applications

Inner sheath: specially made weather resistant high-strength composite material (fully extruded to protect the stability of the cable core, optional)

Strengthening the anti torsion layer: special aramid weaving layer

Outer sheath: made of soft PVC composite material

Sheath color: gray, black, orange, etc.

The rated voltage U0/U is 300/500V;

Long term working environment temperature of cables:

Mobile installation: -5~+70 ° C;

Fixed installation: -40~+70 ° C;

The laying environment temperature of the cable shall not be lower than -5 ° C;

Small allowable bending radius for cables:

Mobile installation: 10d

Fixed installation: 5d
