There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Standard

IEC 60502-2: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 2: Cables for rated voltages from 6 kV (Um=7.2 kV) up to 30 kV (Um=36 kV)

Application

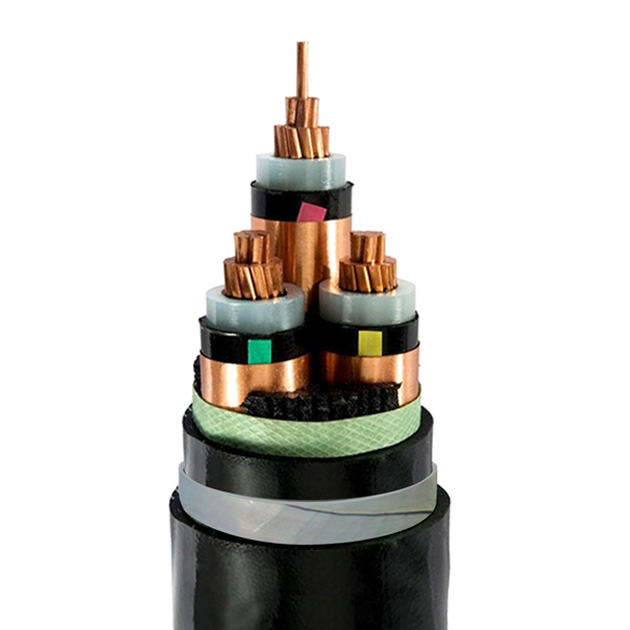

This XLPE insulated copper conductor medium voltage power cable is used in underground power transmission lines of rated voltage 35KV and below. Steel wire or steel tape armored cables are also available.

Product Details

1) Conductor: Compact stranded copper
2) Sectional area: 10~400 mm2
3) Conductor screen: extruded semi-conducting compound
4) Insulation: XLPE
5) Insulation screen: extruded semi-conducting compound
6) Metallic screen: copper tape
7) No. of cores: 1, 3
8) Inner sheath (optional): PVC
9) Armor (optional): Steel wire, steel tape, aluminum wire, etc.
10) Outer sheath: PVC
11) Max. working temperature: 90ºC

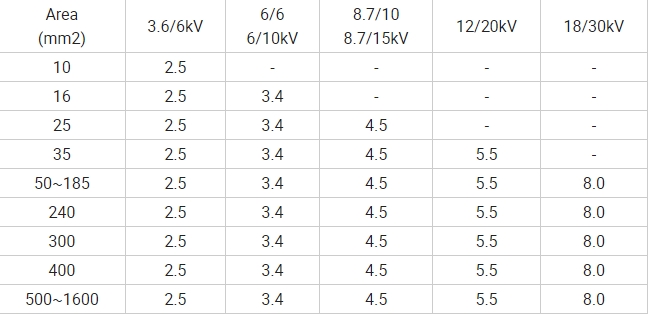

12) Coreesonding area & insulation level
