There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

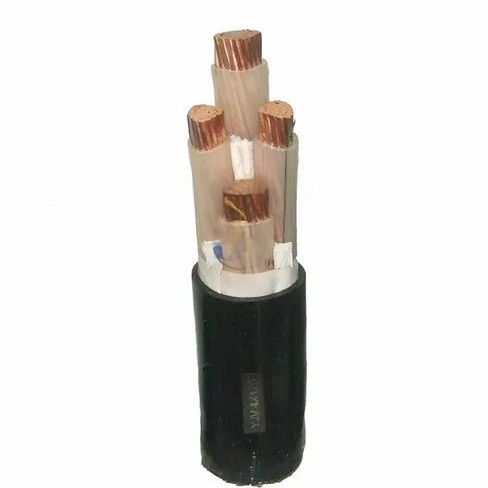

Specification

Conductor:Al or Cu.
Sizes:16,25,35,50,70,95,120,150,185,240,300mm2
Insulation:XLPE.
No.cores:4.
Armor:SWA.
Outer sheath:PVC.
Voltage:0.6/1kV
Standard:IEC60502-1.
Specifal properties,such as fire resistant,flame retardant,low smoke low halogen and low smoke zero halogen,allowed too.

1.Application and Standards

1.1. XLPE power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

1.2. The products can be produced according to our factory specification which is equivalent to the standard IEC60502.The factory can also design and manufacture special XLPE cable according to the other standards required by the customers.

2. Properties

The highest rated working temperature:90°C, the highest conductor short-circuit temperature: 250°C.

Excellent electrical performance, resistance to chemical corrosion.

They can stand advisable traction when laid.

Can stand traction from Outside.

Left low smoke halogen-free after burned.

Retard the burning of the cable.

Used in construction, industrial,underground,mining,power station,railway.

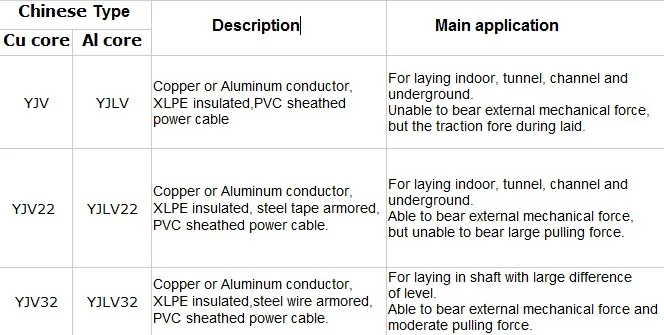

3. Type of XLPE cables
