1.Application

The 3 core armoured 11KV medium voltage power cable is suitable for energy networks such as Power Stations, installation in ducts, underground and outdoor. Please note: Red outer sheath can be prone to fading when exposed to U.V rays. More details can be found within the technical information section below.

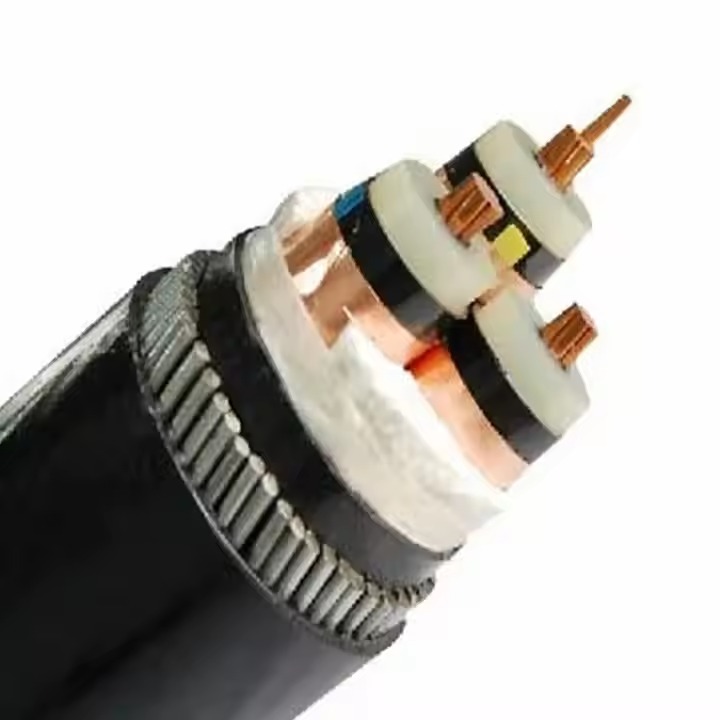

2.Construction

Conductor: Stranded Plain Annealed Circular Compacted Copper Conductors

Insulation: Cross Link Polyethylene (XLPE)

Metallic Screen: Individual and overlapped copper tape scren

Bedding: Polyvinyl Chloride (PVC)

Separator: Blinding Tape

Armouring: Galvanised Steel Wire Armour

Sheath: PVC outer sheath

Sheath Colour: Red

3.Standard

BS 6622

IEC 60502

Flame Propagation to BS EN 60 332
