Electrical Characteristic

Impedance (ohms): 100 ohm+/- 15 ohm

DC Rersistance: <=6.58Ω/100M

Resistance imbalance: <=2.5%

Insulation resistance: 5000MΩ.KM

Standard

TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801 EN50173

Flame resistance level

CMX. CM, MP, CMG, MPG, CMR, MPR

Packing

305meters/roll/box, 2~3box/carton;

Weight: 8.2~11.7KGS/Box (different conductor)

Other

Applicable to network for audio and (ISDN), 10Base-T,100 Base-T4,100Base-TX,100VG-Any LAN,155Mbps ATM,622Mbps ATM TPDDI Fast speed and Extreme Networks.

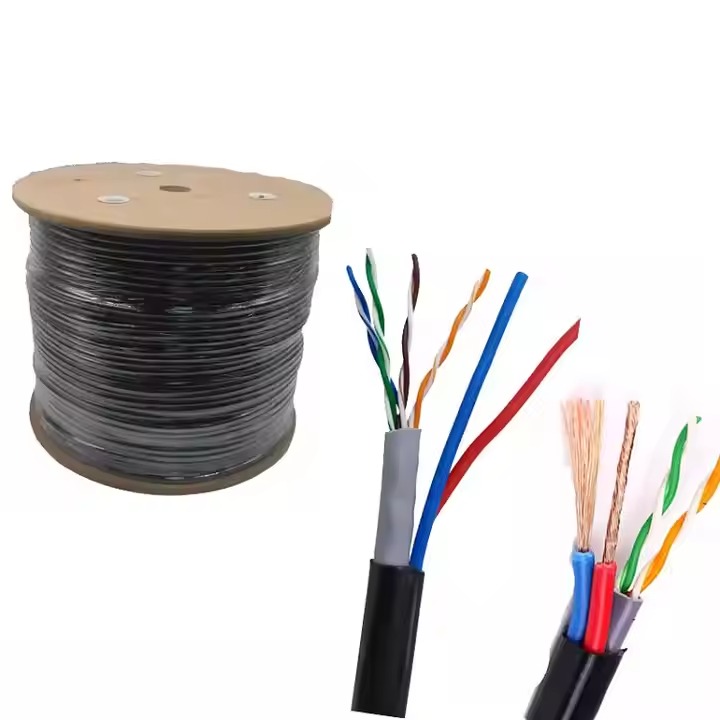

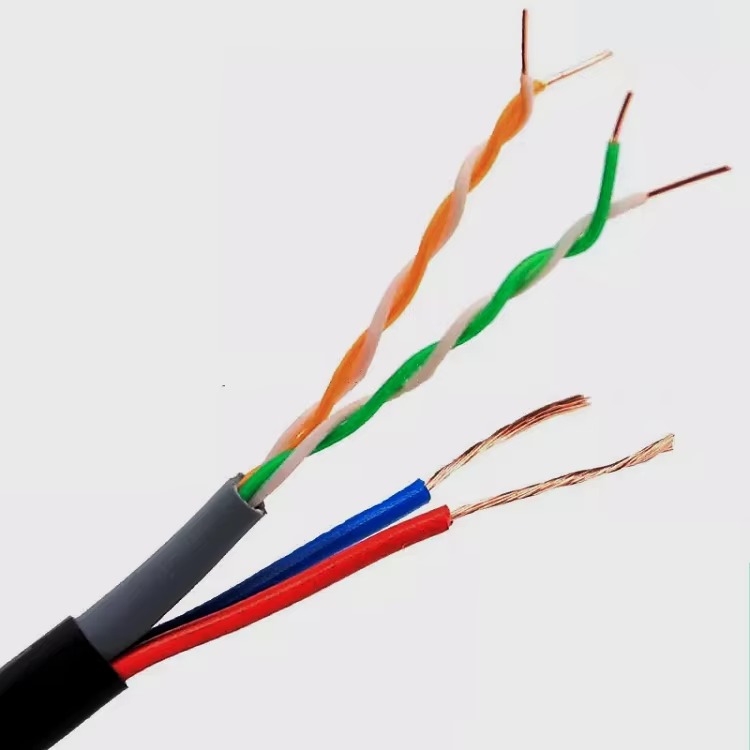

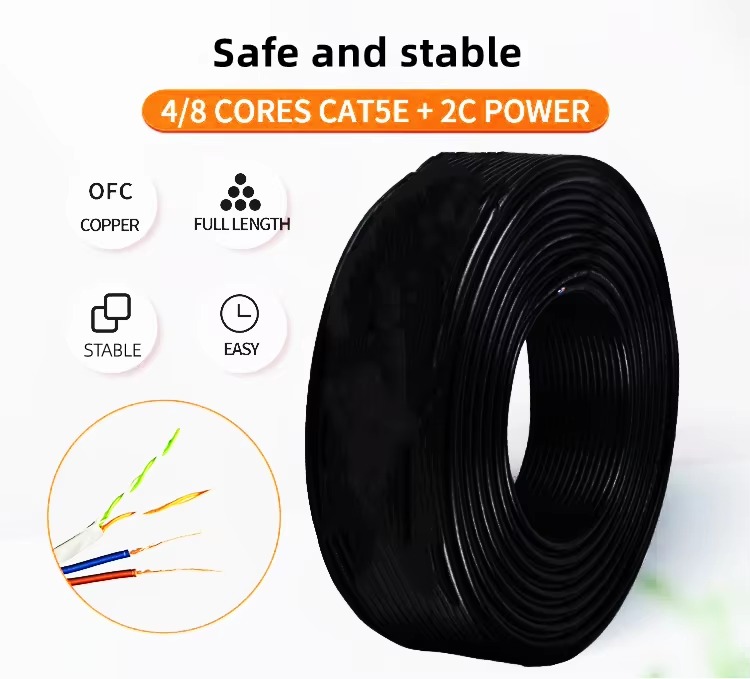

LAN CABLE UTP CAT5E

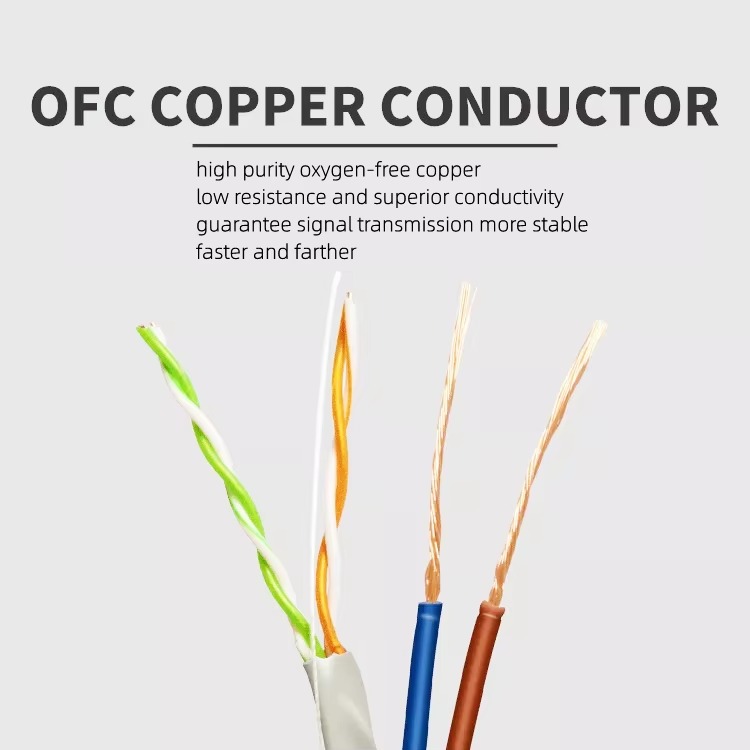

1.The wire core adopts oxygen-free copper,which is fast,stable and high-speed transmission to meet your needs.

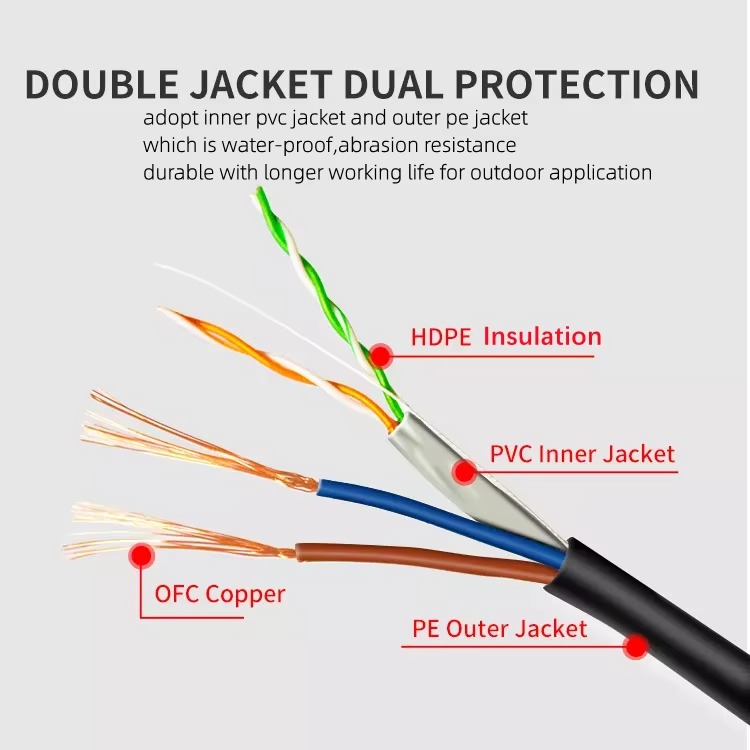

2.The core wire insulation later is made of high-density polyethylene HDPE,which has strong flexibility and good wear resistance.

3.Eco-friendly PVC/LSZH Jacket,high-temperature resistance,long working life

Application

1.It’s mainly used for video surveillance

2.Computer network cabling project

3.Broadband network communication

4.Digital ISDN and ATM 155Mbps network

5.Ethernet network

6.Audio and data transmission
