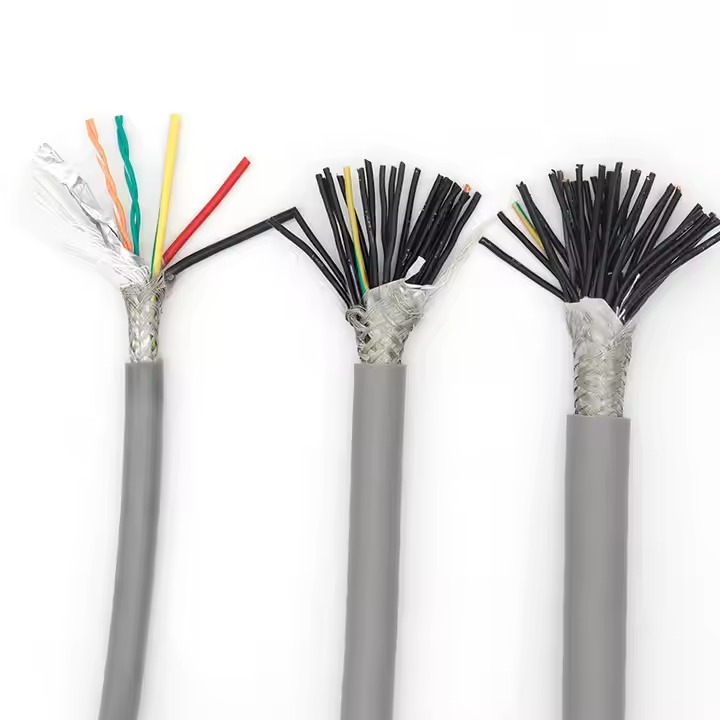

Flexible control cable cable structure

According to IEC60228   VDE0295 fine copper

Conductor —stranding copper wire

Insulation—PVC conductor insulation ,Rohs

Stranding—tight layer stranding for a flexible application

Overall Shield—tinned copper braided screen

Jacket—special PVC outer jacket for extremely harsh operating conditions

 Features of our high flexible cable

KMCABLE high flexible cable produced according to DIN EN standard , designed for high perform-

ance flexing and logner drag chains.This high flexible cables are ideal for harsh industrial environments and are available in shiedled construction to meet EMC .This two core cables are ideal for flexible and stationary applications .Offering reliable solutions for continuous motion applications like drag chains .

Flexible Cable Technical data

Temperature range :flexing -5°C to +80°C      fixed installation -40°C to +80°C

Rated voltage :350-500V                                Test voltage 1500 V

Breakdown voltage 3000V                               Minimum bending radius  flexing 5x cable OD

fixed installation 3x cable Ø

Application

This screen flexible cable is for flexible use ,ideal cable use in cable trays,all areas requiring

a high speed and fast flexiing cable including the industrial machine , Packaging industry, rapid delivery system, refrigeration equipment, laser cutting machinery, engraving machinery and other high-speed chain system electrical connection,.

Suitable for extremely harsh industrial environment and corrosive coolant and lubricating oil occasions. forced movements in dry, moist and wet rooms but not in open air, as cable in the control and regulation technology, tool and machinery, in computer systems, as well as signal line in the electronic.
