1.Application

The NYBY cable is suitable for installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level mechanical protection is required.

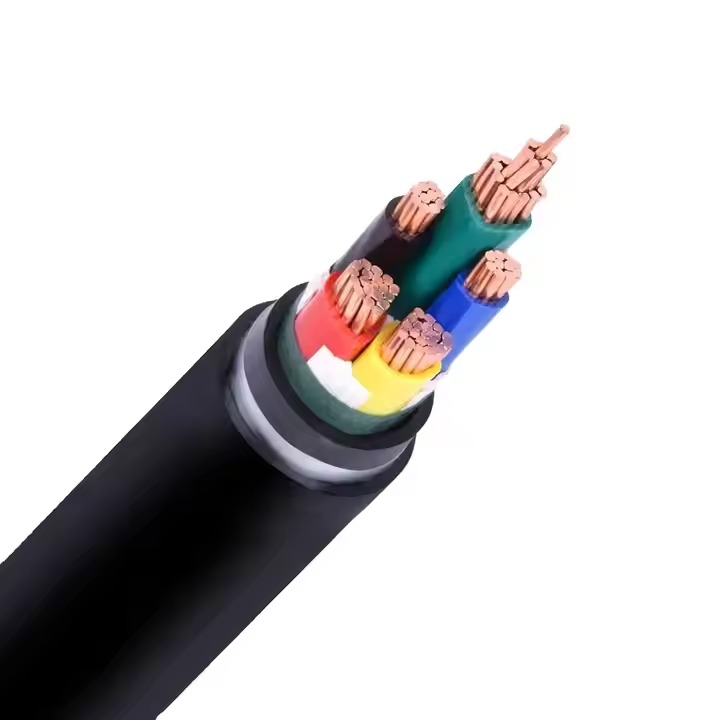

2.Construction

 Conductor Class 2 Stranded copper Insulation PVC (Polyvinyl chloride) Filler PVC (Polyvinyl chloride) Armour Double galvanized steel tape Outer Sheath PVC (Polyvinyl chloride)

3.Standard

IEC 60502-1, VDE 0276-603, IS 1516.1 Flame retardant according to IEC 60332-1

Standard Packing

• 1.5 - 120 sqmm supplied in wooden drum @ 1000 meters

• 150 - 300 sqmm supplied in wooden drum on available length

• Length Tolerance per drum ± 2%
