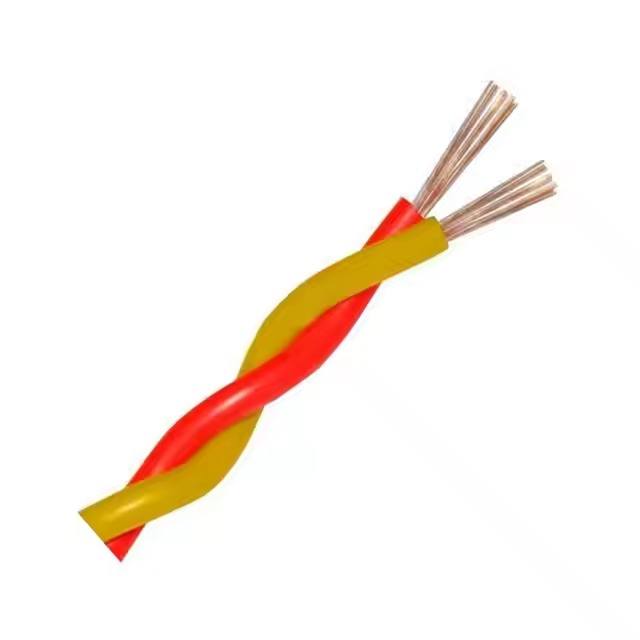

Rvs 2 Core Shielded Twisted Pair Cable

Description:Twisted Flexible Wire

Conductor:Stranded Copper Conductor of Class 5/6 (Flexible)

Insulation:PVC Compound

Conductor Color:Red, Brown, White or double color

Temperature Range:-30 - 70℃

Nominal Voltage:300/500V

Test Voltage:2500 V

Standard:IEC 60552

Cores x conductor cross-section	Conductor construction	Insulation thickness	Conductor resistance at 20 °C	Insulation resistance at 70 °C	Cu weight	Cable weight
	nominal	nominal	max.	min.		Approx
mm²	n x mm	mm	Ω/km	MΩ/km	kg/km	kg/km
2*1.5	85/0.15	0.8	13.3	0.01	28.8	40

others
