There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable

GB9330-1988,IEC,DIN,BS,450/750V AC

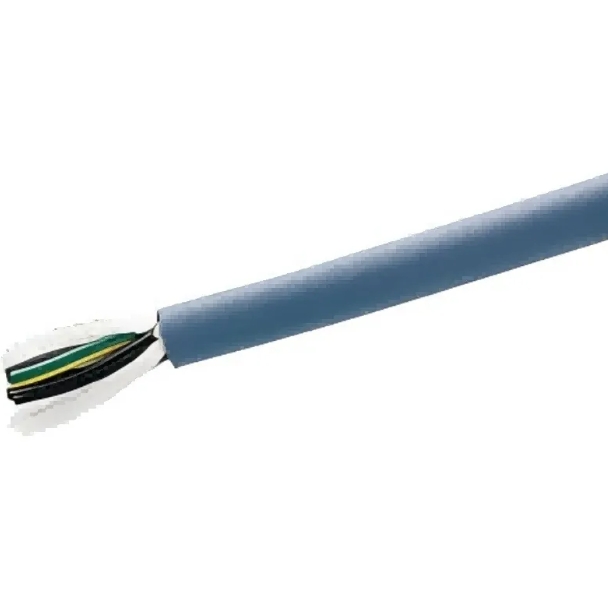

450/750V Copper Coductor PVC Insulated and sheathed Flexible Control Cable
Detailed Product Description
The control cable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.
Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

Characteristics
1,Maximum operation voltage: 600 V.
2,Maximum operation temperature in the conductor:
90°C In a dry environment.
75°C In a wet environment.
3,Soft drawn concentric lay stranded copper conductor class B (7 wires).
4,Manufactured in sizes from 0,823 5 to 5,26 mm2 (18 to 10 AWG).
5,No-flame propagation characteristics.
6,Polyvinyl Chloride (PVC) insulation and jacket with low smoke emission and low acid gas content characteristics. Black outer jacket.
7,No existen especificaciones técnicas para este producto.
8,Con. Multiple-cond. THW-LS / THHW-LS Con. Multiple-cond. THWN / THHN Con. PE + PVC type
Control EPR + CPE Type Control EPR + PVC Type Control XLPE + PVC
Control Zero Halogens LS PVC + PVC type LS PVC + PVC type / shielded cables
9,LS tipo PVC + PVC / interlock armor industrial plants and to connect safety and signaling devices, where characteristics such as no- flame propagation, low smoke emission and low acid gas content are required.
10,Can be installed in trays or conduits and in underground or exposed to sunlight facilities, in wet or dry locations.
