There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

1.Characteristics and Applications of the Products:

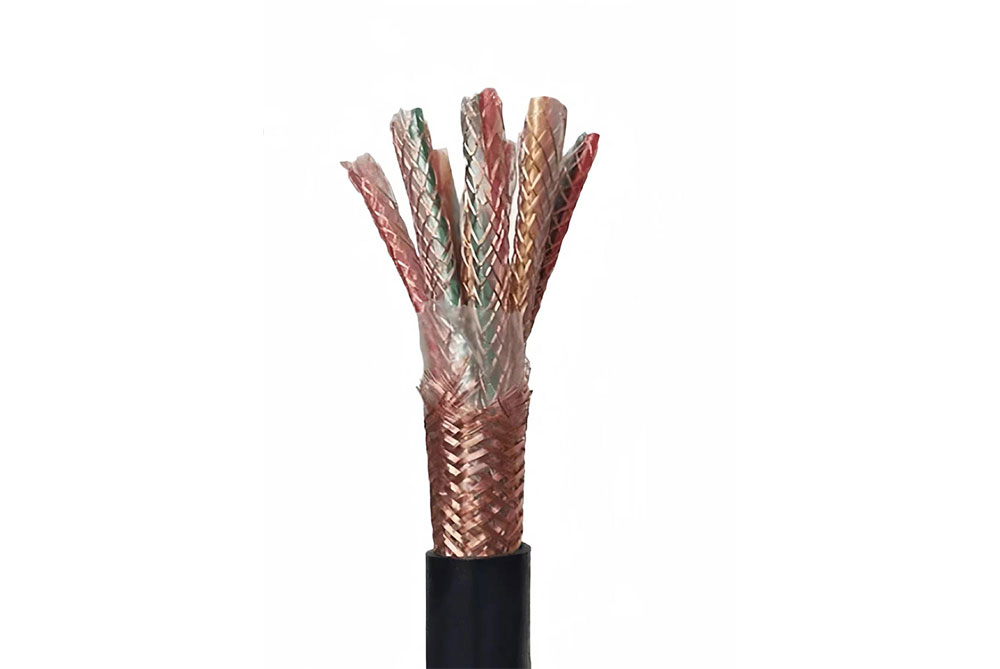

Plastic insulated control cable is used to connect electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U0 /U up to and including 450/750v.

The main features of the flame retardant PVCcontrol cable is hard to get fire or that the continuous buring of cables is very limited when it is on fire .It applies to the places with special demands of flame retardant property.

Fire resistant cable can operate normally for some time when it is burning except that is transmit electrical power under normal condition.It is used in the places necessary to resist fire.

2.Operating characteristics:

The long-time permissible operating temperature is 70oC;

The ambient temperature under installation should not go below 0oC.

a. for non-armoured cable and flexible shielded cable, the bending radius should not be less than 6      times the outer diameter;

b. for armoured or copper-tape shielded cable, the bending radius should not be less than 12 times the      outer diameter;
