There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

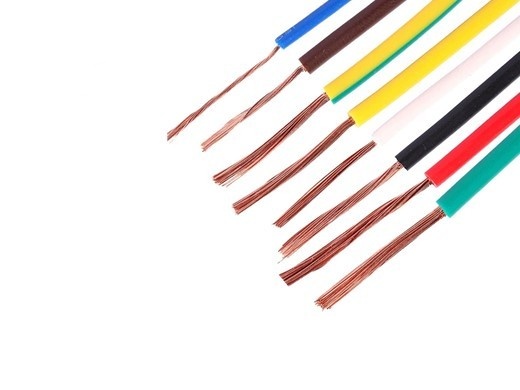

1 Product name: 3core cable wire electrical/china cable factory/power transmission

2 Color: black,white,red,blue,green,gray,etc

4  Application:
This product is fit for AC rated voltage 450/750 V and below of domestic electrical appliances,of smaller size motorriace tools,
of various meters and motorized lighting installations.

5 Use features:   Installation temperature not lower than 0ºC,and the bending radius should not be less than 10 times of
outer dismeter of cable;The long-time working temperature of cable should not be higher than 70ºC;
When core is in short-circuit(max 5s)the temperature should not exceed 160ºC.

6 Nominal cross section area of conductor:
0.5 mm2,0.75 mm2,1.0 mm2,1.5mm2,2.5mm2,4mm2,6mm2,10 mm2,
16 mm2,25 mm2,35 mm2,50 mm2,up to 400mm2

7  Conductor:  copper cu/aluminum al/tinned copper

8  Insulation material:  PVC

9  Core: 1 core,2 core,3 core,4 core,5 core

10  Rated voltage:  low voltage,300/500 v,470/750 v,450/750 v

11  Insulation thickness:  0.6mm 0.7mm 0.8mm 1.0mm,1.5 mm,2 mm,or according requirements

12  Armour:  can be armored if it is needed

13  Steel tape thickness: NA

14  Sheath thickness:   0.6mm 0.7mm 0.8mm 1.0mm,1.5 mm,2 mm,or according requirements

15  Approx.overrall/average diameter of cable: 2.4-33mm

16  Approx weight of cable:  copper conductor 20.3-3870 kg/km;aluminum conductor 17-1390 kg/km

17  Conductor resistance at 20ºC:  copper conductor ≤0.0778-12.1Ω/km,aluminum conductor ≤0.0470-11.80Ω/km

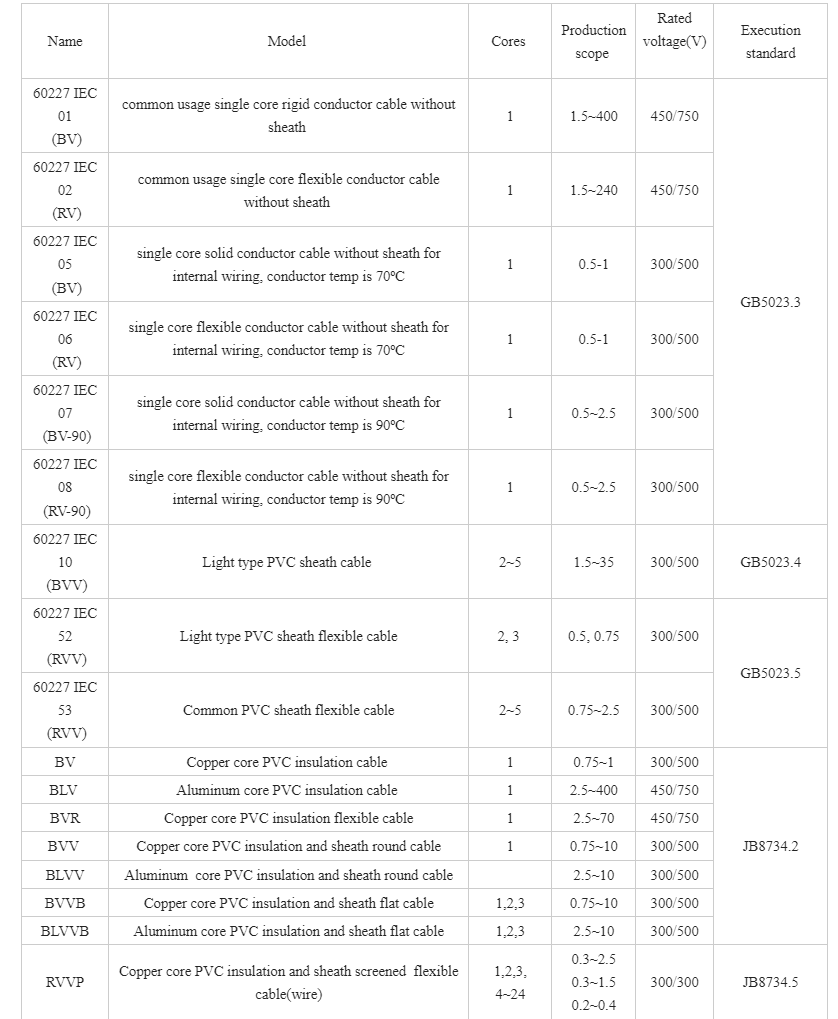

18  Other product describtion:  as follows
