Specifications

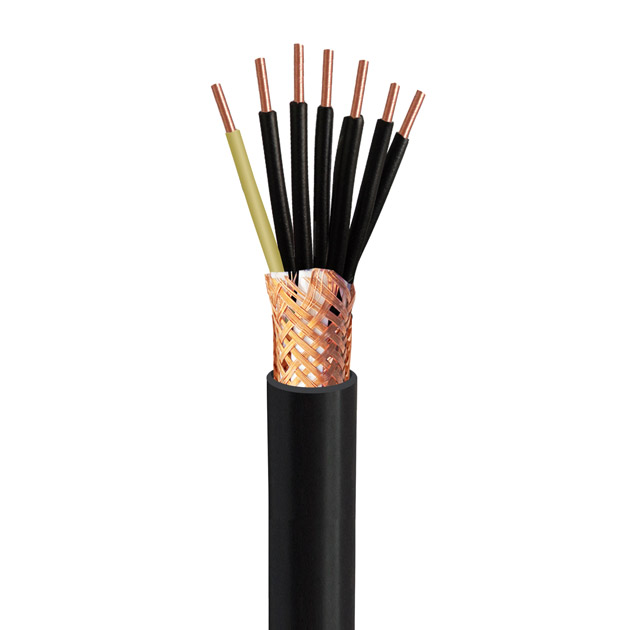

Flexible Power Control Cable with Colored Conductors Conductor:Copper
Insulation:PVC,XLPE
Sheath:Flame retardant PVC


Application

For electricity supply and control in public networks and industrial plantsclassified areas (IEC 60079-14).

Recommended for direct burial. For indoor and outdoor installation in dry and wet locations, on racks, in conduits

Construction

Conductor plain annealed copper, class 1 or class 2 resp., acc. to IEC 60228

class 1: circular solid

class 2: circular stranded

Insulation polyvinylchlorid PVC

Colour code black, continuously numbered

Laying up cores twisted in layers (if necessary with filling element(s))

Wrapping at least 1 layer of plastic tape

Bedding extruded polyvinyl chloride PVC, black

Armour galvanized round steel wires/ galvanized steel tape

Screen  copper tape screen/ copper wire braid screen/ plastic coated aluminium foil screen

Outer Sheath extruded polyvinyl chloride PVC, black


Technical Data Abbreviations

Flame retardancy: IEC 60332-1

Flame propagation:IEC 60332-3 cat. A

Outer Sheath

Amount of halogen acid gas:max. 17 %(IEC 60754-1)

Limiting Oxygen Index(LOI):min. 30 %(IEC 60332-3 ann.B)

Temperature Index (TI): min. 300 °C(ASTM-D-2863)


Temperature Range

- 30 °C up to + 70 °C(during operation)

- 5 °C up to + 50 °C(during installation)

max. + 160 °C(under short circuit)

Electrical Data at 20 °C

Character Unit Values

Conductor resistance max. Ω/km acc. to IEC 60228

Test voltage Urms core: core V 3500

Test voltage Urms core: armour V 3500

Nominal voltage Uo /U V 600/1000

Highest system voltage Um max. V 1200 (for three phase systems)
