There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application:
This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in the balance of system (BOS) integration.
UL Type PV (Photovoltaic) UL 4703, 600V, -40°C to 90°C
Single-Conductor: 2kV • Rated 90°C • RHH/RHW-2 • CSA 1kV RPV-90

Product Description:
Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Electrical Characteristics:
--Maximum Operating Voltage: 600 VRMS (UL PV)
Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE  Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility

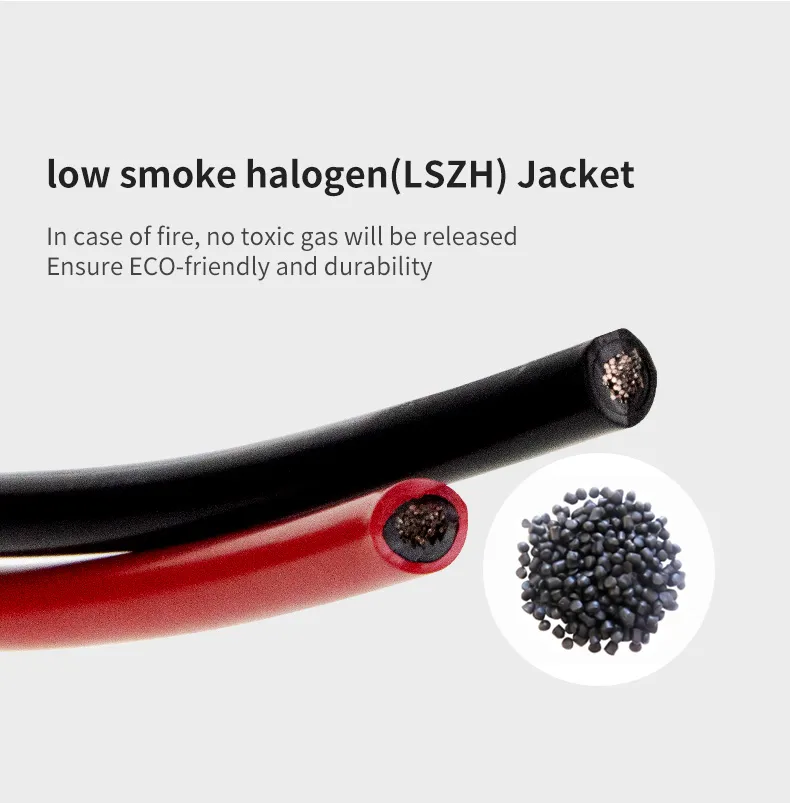

--Jacket Material: Sunlight-Resistant PVC  Black, low smoke, non-halogenated, flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter

Physical Characteristics (contd.):
--Applicable Specifications:
UL Type PV (overall) UL 4703 USE-2 Rated (14 AWG & Larger 600V)
UL Type RHW-2 (90°C wet) (14 AWG & Larger per UL)
ROHS Compliant CE
